Same model may have multiple batches, images only for reference.

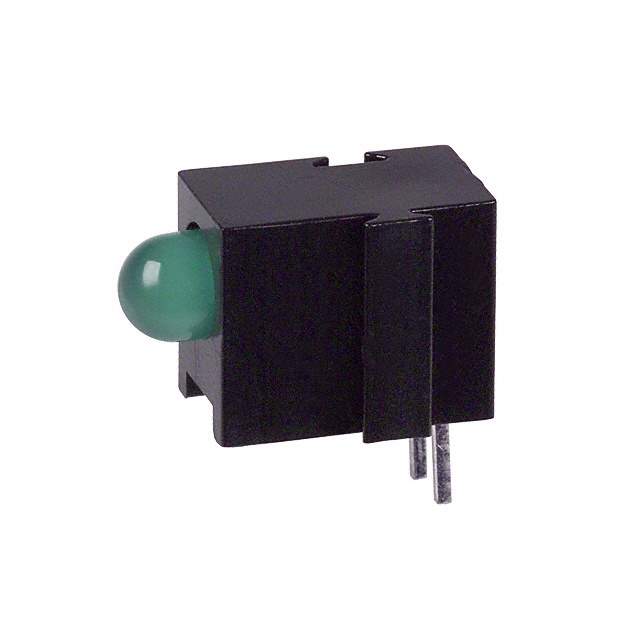

SSF-LXH2300GD-LM Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH2300GD-LM

Part No SSF-LXH2300GD-LM
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3MM RA MATING GREEN PC MNT / LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.2V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Datasheet
SSF-LXH2300GD-LM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green
Wavelength - Peak 565nm
Configuration Single
Current 20mA
Millicandela Rating 50mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 2.2V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH2300
Other Names LU20245,SSF-LXH2300GD,SSFLXH2300GDLM,67-1274
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238211-SSF-LXH2300GD-LM
Ultra Librarian 3D Model Ultra Librarian SSF-LXH2300GD-LM CAD Model

Description

The SSF-LXH2300GD-LM is an LED circuit board indicator that belongs to the optoelectronics category.

  • Color: green
  • Packaging: bulk packaging
  • Voltage Rating: 2.2V
  • Standard Package: 500
  • Configuration: single
  • Viewing Angle: 60°
  • Millicandela Rating: 50mcd
  • Wavelength-Peak: 565nm
  • Current: 20mA
  • Lens Type: diffused, tinted
  • Mounting: through hole, right angle
  • Lens Style: round lens style with a domed top
  • Lens Size: 3mm, T-1
  • Manufacturer: Lumex Opto/Components Inc.
