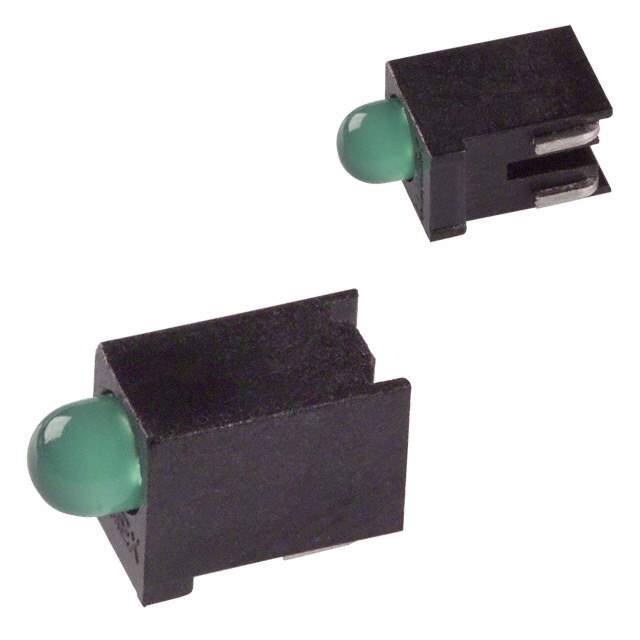

SSF-LXH305SGD-TR Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH305SGD-TR

Part No SSF-LXH305SGD-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED ALINGAP RA GRN DIF 565NM SMD / LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.2V 20mA Round with Domed Top 3mm, T-1 Surface Mount, Right Angle
Datasheet
SSF-LXH305SGD-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Green
Wavelength - Peak 565nm
Configuration Single
Current 20mA
Millicandela Rating 150mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 2.2V
Mounting Type Surface Mount, Right Angle
Base Product Number SSF-LXH305
Other Names 67-1742-2,67-1742-1,SSFLXH305SGDTR,67-1742-1R,67-1742-2R,67-1742-6
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238089-SSF-LXH305SGD-TR
Ultra Librarian 3D Model Ultra Librarian SSF-LXH305SGD-TR CAD Model

Description

The SSF-LXH305SGD-TR is a surface mount right angle LED in a 3mm T-1 package with a diffused, tinted lens that emits green light.

  • Lens Size: 3mm T-1
  • Lens Type: Diffused, tinted
  • Viewing Angle: 60 degrees
  • Peak Wavelength: 565nm
  • Millicandela Rating: 150mcd @ 20mA
  • Voltage Rating: 2.2V
  • Package: Tape and reel
  • Standard Package: 1,000
