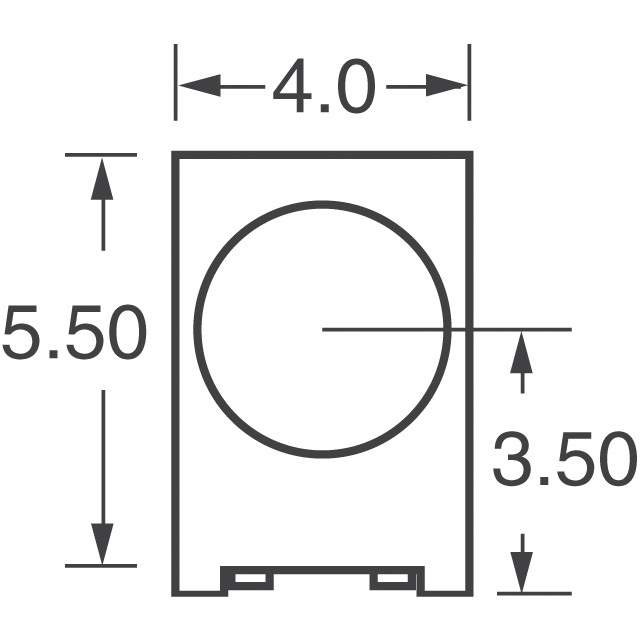

SSF-LXH305SOD-TR Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH305SOD-TR

Part No SSF-LXH305SOD-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED ALINGAP RA ORN DIF 610NM SMD / LED Circuit Board Indicator LED Circuit Board Indicator Single Orange Diffused, Tinted 2.1V 20mA Round with Domed Top 3mm, T-1 Surface Mount, Right Angle
Datasheet
SSF-LXH305SOD-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Tape & Reel (TR)
Color Orange
Wavelength - Peak 610nm
Configuration Single
Current 20mA
Millicandela Rating 100mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 2.1V
Mounting Type Surface Mount, Right Angle
Base Product Number SSF-LXH305
Other Names 67-1744-2,67-1744-2R,67-1744-1
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238084-SSF-LXH305SOD-TR
Ultra Librarian 3D Model Ultra Librarian SSF-LXH305SOD-TR CAD Model

Description

The Lumex Opto/Components Inc. SSF-LXH305SOD-TR is a surface mount and right angle mounting type LED component suitable for LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs.

  • Standard Package: 1,000
  • Viewing Angle: 60°
  • Millicandela Rating: 100mcd
