Same model may have multiple batches, images only for reference.

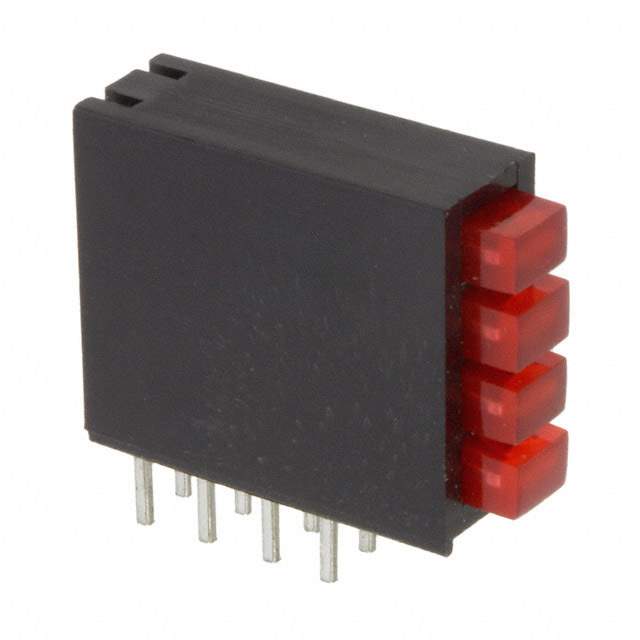

SSF-LXH534SID Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH534SID

Part No SSF-LXH534SID
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 2X3MM QUAD 636NM HRED DIFF / LED Circuit Board Indicator LED Circuit Board Indicator 4 High Red (x 4) Diffused, Tinted 2.0V 30mA Rectangle with Flat Top 3.00mm x 2.00mm Through Hole, Right Angle
Datasheet
SSF-LXH534SID Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red (x 4)
Wavelength - Peak 636nm
Configuration 4 High
Current 30mA
Millicandela Rating 120mcd
Viewing Angle 100°
Lens Type Diffused, Tinted
Lens Style Rectangle with Flat Top
Lens Size 3.00mm x 2.00mm
Voltage Rating 2.0V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH534
Other Names 67-2203,SSF-LXH534SID
Standard Package 650
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238185-SSF-LXH534SID
Ultra Librarian 3D Model Ultra Librarian SSF-LXH534SID CAD Model

Description

The Lumex Opto/Components Inc. 1238185-SSF-LXH534SID is a bulk package of red LED circuit board indicators that come in a configuration of 4 high.

  • Viewing Angle: 100 degrees
  • Millicandela Rating: 120mcd
  • Peak Wavelength: 636nm
  • Voltage Rating: 2.0V
  • Current: 30mA
  • Lens Type: diffused, tinted
  • Mounting Type: through hole, right angle
  • Lens Style: rectangle with a flat top
  • Lens Size: 3.00mm x 2.00mm
