Same model may have multiple batches, images only for reference.

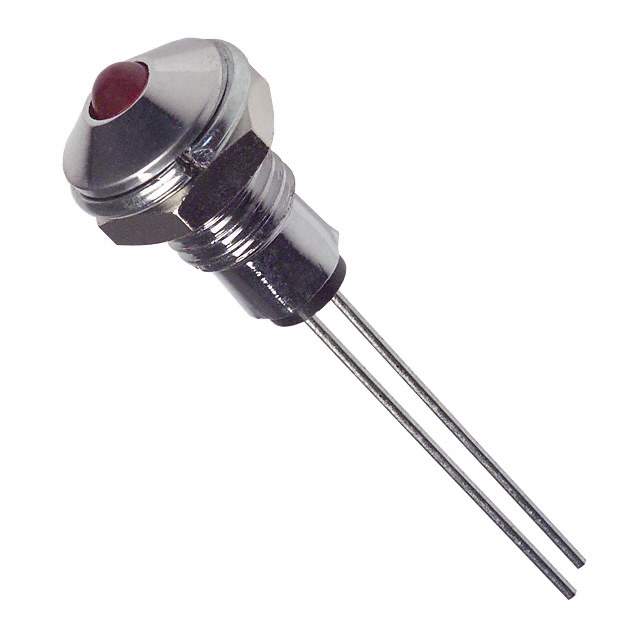

SSI-LXR3612SRD Real Image
Same model may have multiple batches, images only for reference.

SSI-LXR3612SRD

Part No SSI-LXR3612SRD
Manufacturer Lumex Opto/Components Inc.
Catalog Panel Indicators, Pilot Lights
Description LED 3MM SUPER RED DIFF PANEL MT / LED Panel Indicator Red Diffused 60° 1.8V 30mA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Panel Indicators, Pilot Lights
Mfr Lumex Opto/Components Inc.
Package Bulk
Type LED
Lamp Color Red
Lens Color Red
Lens Transparency Diffused
Ratings Vf (Typ), If (Max)
Voltage 1.8V
Current 30mA
Panel Cutout Shape Round
Panel Cutout Dimensions 0.24" (6.10mm)
Lens Size 3mm, T-1
Lens Style Round with Domed Top
Millicandela Rating 65mcd
Wavelength - Peak 660nm
Viewing Angle 60°
Base Product Number SSI-LXR3612
Other Names 67-1154,SSILXR3612SRD,LU1001B1
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1237826-SSI-LXR3612SRD
Ultra Librarian 3D Model Ultra Librarian SSI-LXR3612SRD CAD Model

Description

This LED panel indicator light from Lumex Opto/Components Inc. is perfect for use in a variety of electronic applications.

  • Voltage Rating: 1.8V
  • Current: 30mA
  • Millicandela Rating: 65mcd
  • Peak Wavelength: 660nm
  • Lens Size: 3mm, T-1
  • Lens Color: diffused red
  • Panel Cutout Dimensions: 0.24" (6.10mm)
  • Viewing Angle: 60°
  • Termination Style: not specified
  • Package: bulk
