Same model may have multiple batches, images only for reference.

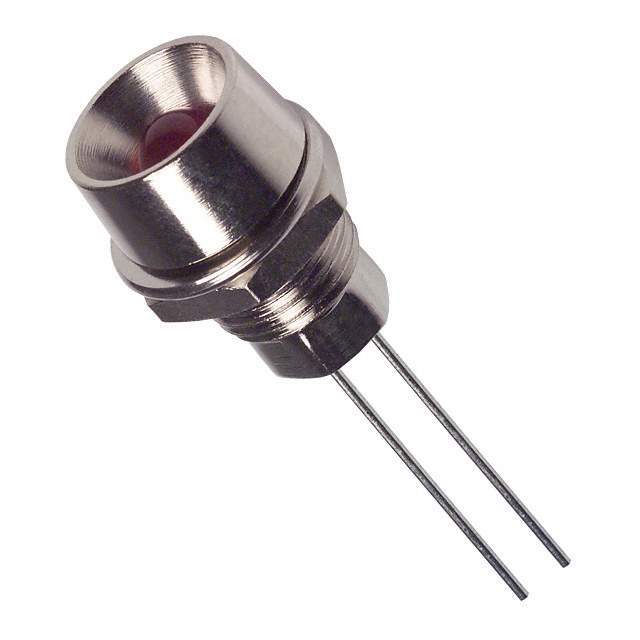

SSI-LXR4815SRD Real Image
Same model may have multiple batches, images only for reference.

SSI-LXR4815SRD

Part No SSI-LXR4815SRD
Manufacturer Lumex Opto/Components Inc.
Catalog Panel Indicators, Pilot Lights
Description LED 5MM SUP RED DIFF REFL PNL MT / LED Panel Indicator Red Diffused 60° 1.8V 30mA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Panel Indicators, Pilot Lights
Mfr Lumex Opto/Components Inc.
Package Bulk
Type LED
Lamp Color Red
Lens Color Red
Lens Transparency Diffused
Ratings Vf (Typ), If (Max)
Voltage 1.8V
Current 30mA
Panel Cutout Shape Round
Panel Cutout Dimensions 0.32" (8.13mm)
Lens Size 5mm, T-1 3/4
Lens Style Round with Domed Top
Millicandela Rating 300mcd
Wavelength - Peak 660nm
Viewing Angle 60°
Base Product Number SSI-LXR4815
Other Names 67-1166,67-1166R,LU1004B1,SSILXR4815SRD
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1237827-SSI-LXR4815SRD
Ultra Librarian 3D Model Ultra Librarian SSI-LXR4815SRD CAD Model

Description

The SSI-LXR4815SRD is a red LED panel indicator or pilot light from Lumex Opto/Components Inc.

  • Viewing Angle: 60 degrees
  • Lens Transparency: diffused red
  • Millicandela Rating: 300mcd
  • Voltage: 1.8V
  • Current: 30mA
  • Wavelength Peak: 660nm
  • Panel Cutout Dimension: 0.32" (8.13mm)
  • Panel Cutout Shape: round
  • Lens Style: round with domed top
  • Lens Size: 5mm, T-1 3/4
