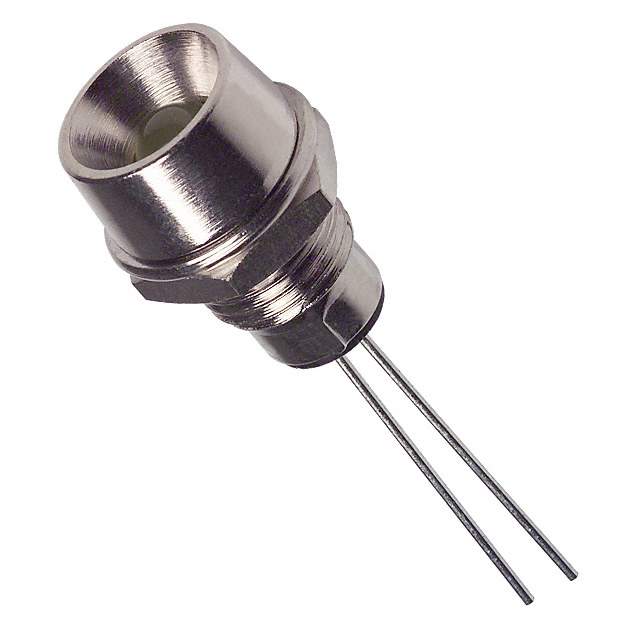

SSI-LXR4815YD Real Image
Same model may have multiple batches, images only for reference.

SSI-LXR4815YD

Part No SSI-LXR4815YD
Manufacturer Lumex Opto/Components Inc.
Catalog Panel Indicators, Pilot Lights
Description LED 5MM YELLOW DIFF REFL PANELMT / LED Panel Indicator Yellow Diffused 60° 2.1V 30mA
Datasheet
SSI-LXR4815YD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Panel Indicators, Pilot Lights
Mfr Lumex Opto/Components Inc.
Package Bulk
Type LED
Lamp Color Yellow
Lens Color Yellow
Lens Transparency Diffused
Ratings Vf (Typ), If (Max)
Voltage 2.1V
Current 30mA
Panel Cutout Shape Round
Panel Cutout Dimensions 0.32" (8.13mm)
Lens Size 5mm, T-1 3/4
Lens Style Round with Domed Top
Millicandela Rating 20mcd
Wavelength - Peak 585nm
Viewing Angle 60°
Base Product Number SSI-LXR4815
Other Names LU10047,67-1165,67-1165R,SSILXR4815YD
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1237797-SSI-LXR4815YD
Ultra Librarian 3D Model Ultra Librarian SSI-LXR4815YD CAD Model

Description

The SSI-LXR4815YD is a yellow LED panel indicator from Lumex Opto/Components Inc. that has a 60° viewing angle and a millicandela rating of 20mcd.

  • Voltage: 2.1V
  • Current: 30mA
  • Panel Cutout Dimensions: 0.32 inches
  • Panel Cutout Shape: Round
  • Lens Style: Round with a Domed Top
  • Lens Size: 5mm, T-1 3/4
  • Lens Type: Diffused
  • Lamp Color: Yellow
