Same model may have multiple batches, images only for reference.

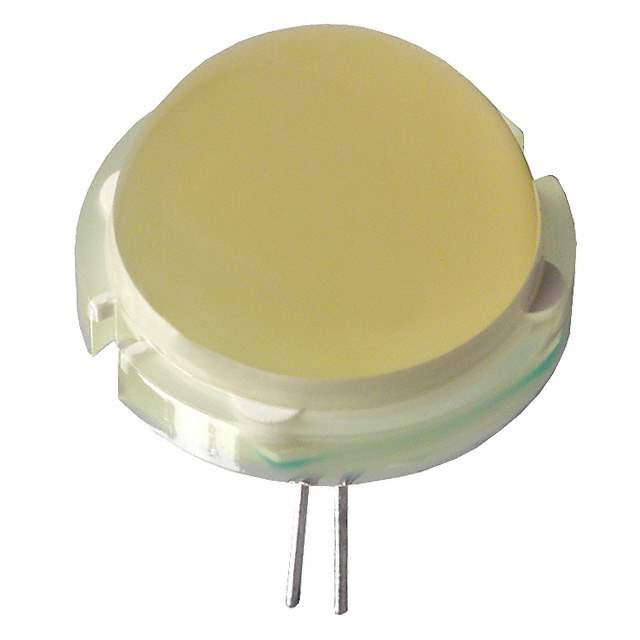

SSL-LX20R6YD Real Image
Same model may have multiple batches, images only for reference.

SSL-LX20R6YD

Part No SSL-LX20R6YD
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED YELLOW DIFF 6CHIP JUMBO T/H / Yellow LED Indication - Discrete 6.3V Radial
Datasheet
SSL-LX20R6YD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Yellow
Configuration Standard
Lens Color Yellow
Lens Transparency Diffused
Millicandela Rating 23mcd
Lens Style Round with Domed Top
Lens Size 20.00mm Dia
Voltage - Forward (Vf) (Typ) 6.3V
Current - Test 20mA
Viewing Angle 120°
Mounting Type Through Hole
Wavelength - Peak 585nm
Package / Case Radial
Supplier Device Package 6-CHIP JUMBO
Height (Max) 13.50mm
Base Product Number SSL-LX20
Other Names SSLLX20R6YD,67-1529,67-1529R
Standard Package 41
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241951-SSL-LX20R6YD
Ultra Librarian 3D Model Ultra Librarian SSL-LX20R6YD CAD Model

Description

The SSL-LX20R6YD is a high-quality through-hole LED manufactured by Lumex Opto/Components Inc.

  • Viewing Angle: 120°
  • Millicandela Rating: 23mcd
  • Lens Style: Domed Top
  • Lens Size: 20.00mm diameter
