Same model may have multiple batches, images only for reference.

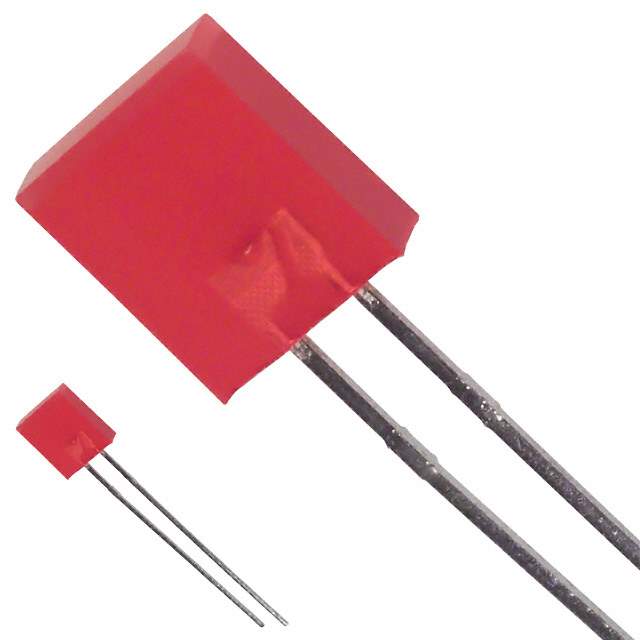

SSL-LX25783SRD Real Image
Same model may have multiple batches, images only for reference.

SSL-LX25783SRD

Part No SSL-LX25783SRD
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED RED DIFF RECT 2.3MMX7MM T/H / Red LED Indication - Discrete 1.8V Radial
Datasheet
SSL-LX25783SRD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red
Configuration Standard
Lens Color Red
Lens Transparency Diffused
Millicandela Rating 50mcd
Lens Style Rectangle with Flat Top
Lens Size 7.00mm x 2.30mm
Voltage - Forward (Vf) (Typ) 1.8V
Current - Test 20mA
Viewing Angle 110°
Mounting Type Through Hole
Wavelength - Peak 660nm
Package / Case Radial
Supplier Device Package Rectangular 2.3mmx7mm
Height (Max) 8.00mm
Base Product Number SSL-LX25783
Other Names 67-1054,67-1054R
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242010-SSL-LX25783SRD
Ultra Librarian 3D Model Ultra Librarian SSL-LX25783SRD CAD Model

Description

The Lumex Opto/Components Inc. 1242010-SSL-LX25783SRD is a red LED indication discrete product.

  • Standard Package: 1,000 units
  • Configuration: Standard
  • Viewing Angle: 110°
  • Millicandela Rating: 50mcd
  • Voltage-Forward: 1.8V
  • Current-Test: 20mA
  • Wavelength-Peak: 660nm
  • Height: 8.00mm
  • Mounting Type: Through hole
  • Package/Case: Radial
  • Supplier Device Package: Rectangular 2.3mmx7mm
  • Lens Style: Rectangle with flat top
  • Lens Size: 7.00mm x 2.30mm
  • REACH: REACH unaffected
  • HTSUS: 8541.41.0000
