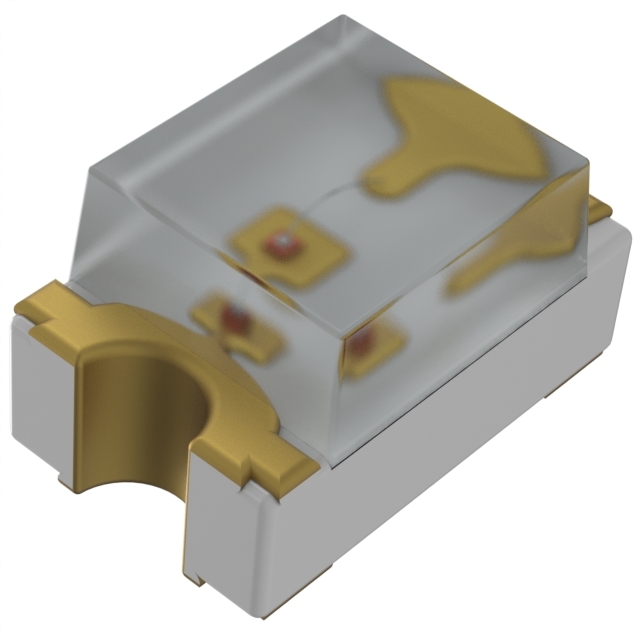

SML-LX0603SGW-TR Lumex Opto/Components Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SML-LX0603SGW-TR

Part No SML-LX0603SGW-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED 565NM SGRN WHT DIFF 0603 T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Green
Lens Color White
Lens Transparency Diffused
Millicandela Rating 20mcd
Lens Style Rectangle with Flat Top
Lens Size 1.00mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Viewing Angle 160°
Mounting Type Surface Mount
Wavelength - Peak 565nm
Case / Package 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 1.60mm L x 0.80mm W
Height (Max) 0.73mm
Package Tape & Reel (TR);Cut Tape (CT);Reel
Supply and Demand Status Limited
Win Source Part Number 1568086-SML-LX0603SGW-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX0603SGW-TR CAD Model

Description

N
