Same model may have multiple batches, images only for reference.

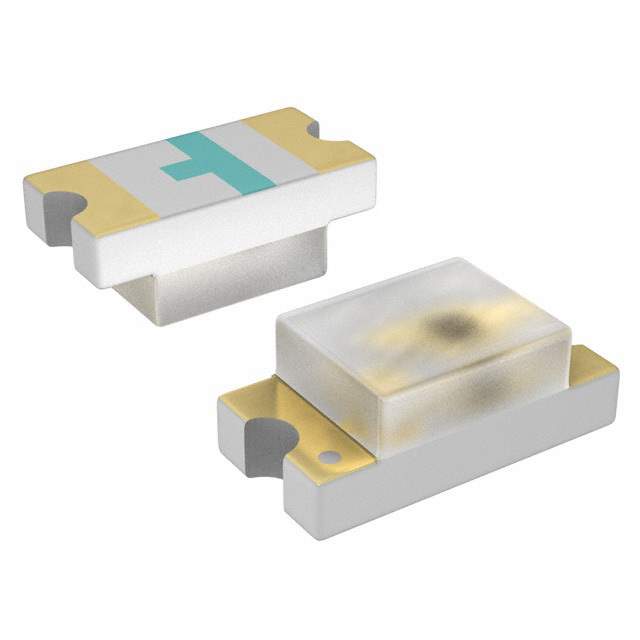

SML-LX0603SIW-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX0603SIW-TR

Part No SML-LX0603SIW-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED RED DIFFUSED SMD / 1.6mm x 0.8mm PCB CHIP, SURFACE MOUNT LED
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Lumex Opto/Components Inc.
Packaging Reel
Color Red
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 71.5mcd
Lens Style Rectangle with Flat Top
Lens Size 1.00mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 128°
Mounting Style SMD
Wavelength - Peak 632nm
Manufacturer Package 0603
Dimension 1.60mm L x 0.80mm W
Height (Maximum) 0.60mm
Manufacturer Pack Quantity 4,000
MSL Level 2 (1 Year)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812258-SML-LX0603SIW-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX0603SIW-TR CAD Model

Description

Lumex Opto/Components Inc.'s SML-LX0603SIW-TR is a low popularity SMD LED from Lumex Opto/Components Inc..

  • Lens Transparency: Diffused white
  • Viewing Angle: 128°
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 4,000
  • MSL Level: 2 (1 Year)
  • Voltage (Vf): 2V
  • Current: 20mA
