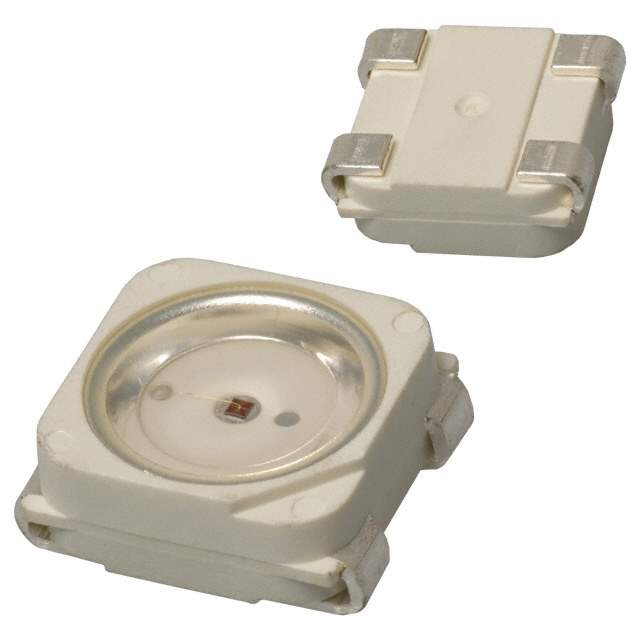

Same model may have multiple batches, images only for reference.

SML-LX1110UPGC-ATR

Name: SML-LX1110UPGC-ATR
Brand: Lumex Opto/Components Inc.
SKU: 794768
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SML-LX1110UPGC-ATR
Manufacturer	Lumex Opto/Components Inc.
Catalog	LED Lighting - Color
Description	LED 525NM ULT GREEN CLEAR 4PLCC / LED Uni-Color Green 525nm 4-Pin SMD T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Optoelectronics
Manufacturer	Lumex Opto/Components Inc.
Series	TitanBrite
Packaging	Reel package
Part Status	Obsolete(EOL)
Color	Green
Wavelength	525nm (Typ)
Current - Test	350mA
Voltage - Forward (Vf) (Typ)	3.5V
Lumens/Watt @ Current - Test	51 lm/W
Current - Max	350mA
Flux @ Current/Temperature - Test	63 lm (Typ)
Temperature - Test	25°C
Viewing Angle	120°
Mounting	SMD
Package	4-SMD, J-Lead
Manufacturer Package	4-PLCC
Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Maximum)	0.173" (4.40mm)
Thermal Resistance of Package	47°C/W
Win Source Part Number	794768-SML-LX1110UPGC-ATR
Popularity	Medium
Supply and Demand Status	Limited
Family Name	SMLLX1110UPGC-A
Introduction Date	October 08, 2007
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	Not Applicable
Ultra Librarian 3D Model	Ultra Librarian SML-LX1110UPGC-ATR CAD Model

Alternative Products

Description

The SML-LX1110UPGC-ATR is a green surface-mount LED manufactured by Lumex Opto/Components Inc.

Series: TitanBrite
Package: 4-SMD, J-Lead
Viewing Angle: 120 degrees
Voltage-Forward: 3.5V (typical)
Maximum Current: 350mA
Thermal Resistance: 47 degrees Celsius per watt
Flux: 63 lm (typical)
Lumens/Watt: 51 lm/W
Applications: Backlighting, Automotive Lighting, General Lighting
