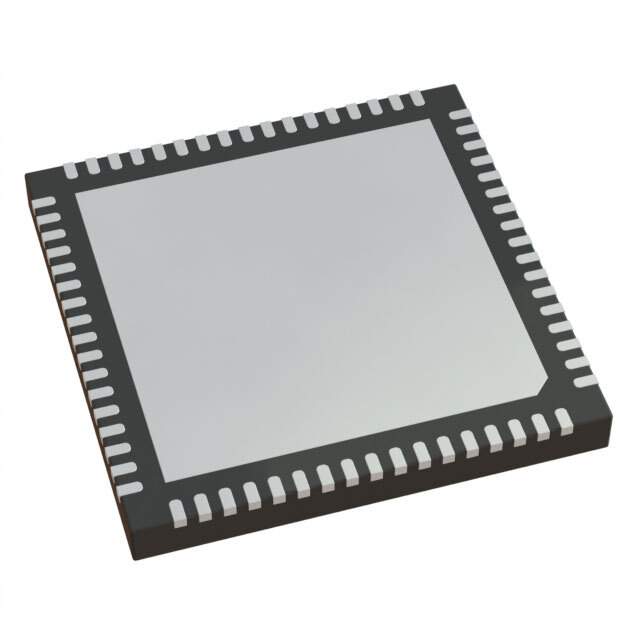

The Si21692-D60-GM is a highly integrated single-chip digital TV demodulator manufactured by Skyworks Solutions Inc. It is designed for terrestrial, cable, and satellite TV reception, supporting multiple standards including DVB-T2/C2/S2X, DVB-S2/S, DVB-T/C, ISDB-T/C, and ATSC. The device provides excellent performance and low power consumption, making it ideal for a wide range of TV applications.

Applications:

• Digital TVs (DTVs)
• Set-top boxes (STBs)
• PC TV tuners
• Satellite receivers
• Terrestrial receivers

Features:

• Multi-standard support: DVB-T2/C2/S2X, DVB-S2/S, DVB-T/C, ISDB-T/C, and ATSC
• High performance demodulation
• Low power consumption
• Integrated LNA (Low Noise Amplifier)
• Flexible IF (Intermediate Frequency) interface
• I2C control interface
• Compact package

Benefits:

• Enables reception of various digital TV standards.
• Provides excellent signal quality and robust performance.
• Reduces system power consumption.
• Simplifies system design with integrated LNA.
• Offers flexible connectivity with IF interface.
• Easy to control via I2C interface.
• Suitable for compact designs with small package size.

Additional Details:

The Si21692-D60-GM integrates a high-performance demodulator with a low-noise amplifier (LNA) to provide excellent signal reception even in weak signal environments. It supports a wide range of intermediate frequencies (IF), allowing for flexible connectivity with different tuner configurations. The device is controlled via an I2C interface, which allows for easy configuration and monitoring of its parameters. The compact package makes it suitable for space-constrained applications. Detailed electrical characteristics, timing diagrams, and package information can be found in the device's datasheet. This demodulator is designed to offer high reliability and performance in digital TV reception applications.
