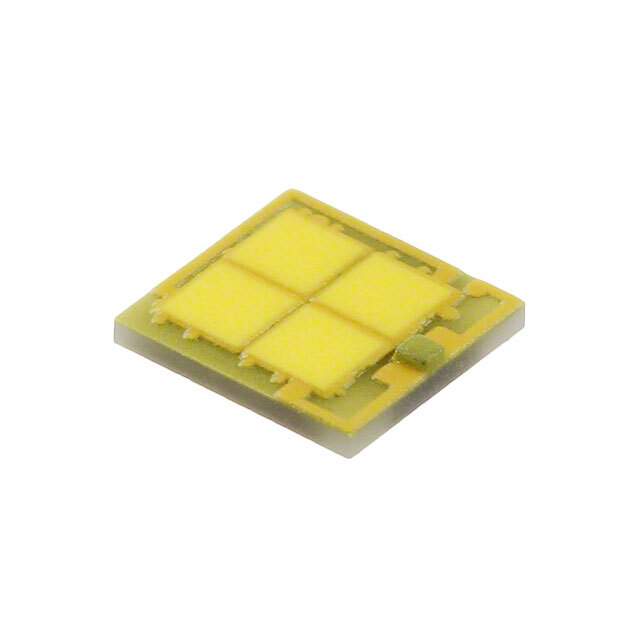

LMZ8-SW30 Real Image
Same model may have multiple batches, images only for reference.

LMZ8-SW30

Part No LMZ8-SW30
Manufacturer Lumileds
Catalog LED Lighting - White
Description Best combination of brightness, uniformity and luminance enabling precision light control
Datasheet
LMZ8-SW30 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Lumileds
Series LUXEON MZ
Packaging Reel - TR
Color White, Warm
CCT (K) 3000K
Flux @ 85°C, Current - Test 781 lm (Typ)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 11.2V
Lumens/Watt @ Current - Test 100 lm/W
CRI (Color Rendering Index) 80
Current - Max 1.2A
Viewing Angle 120°
Mounting SMD
Package 1716 (4240 Metric)
Size 0.165" L x 0.157" W (4.20mm x 4.00mm)
Height - Seated (Maximum) 0.033" (0.84mm)
Thermal Resistance of Package 1.25°C/W
Win Source Part Number 1202601-LMZ8-SW30
Manufacturer Homepage www.luxeon.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LMZ8-SW30 CAD Model

Description

The Lumileds LUXEON MZ is a surface mount LED that offers high output and efficiency in a compact package.

  • Maximum Current: 1.2A
  • Viewing Angle: 120 degrees
  • Color Options: White and Warm Colors
  • Color Temperature: 3000K
  • Package Size: 1716 (4240 Metric)
  • Thermal Resistance: 1.25 degrees Celsius per watt
  • Flux @ 85 degrees Celsius: 781 lumens (typical)
  • Lumens per Watt @ Current Test: 100
  • Color Rendering Index (CRI): 80
  • Supply and Demand: Limited
