Same model may have multiple batches, images only for reference.

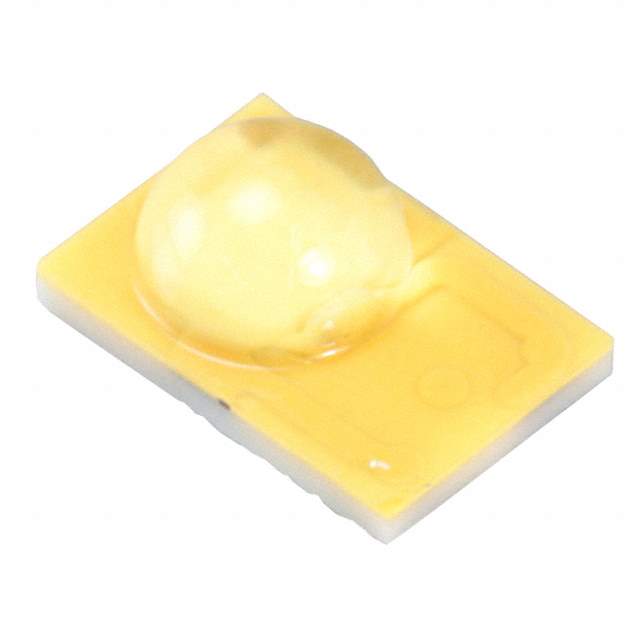

LXA7-PW65 Real Image
Same model may have multiple batches, images only for reference.

LXA7-PW65

Part No LXA7-PW65
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED Uni-Color White 6500K 2-Pin SMD T/R / LED LUXEON COOL WHITE 6500K 3SMD
Datasheet
LXA7-PW65 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Lumileds
Series LUXEON R
Packaging Reel package
Color White, Cool
CCT (K) 6500K 5-Step MacAdam Ellipse
Flux @ 85°C, Current - Test 220 lm (Typ)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.81V
Lumens/Watt @ Current - Test 112 lm/W
CRI (Color Rendering Index) 70
Current - Max 1A
Viewing Angle 120°
Mounting SMD
Package 1812 (4532 Metric)
Dimension 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Maximum) 0.083" (2.10mm)
Thermal Resistance of Package 6°C/W
Win Source Part Number 784783-LXA7-PW65
Popularity Medium
Supply and Demand Status Limited
Family Name LXA7-PW65
Introduction Date March 25, 2012
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian LXA7-PW65 CAD Model

Description

This LUXEON R series LED Lighting - White component is from Lumileds.

  • Win Source Part Number: 784783-LXA7-PW65
  • Package: Reel
  • Color: White, Cool
  • Package: 1812 (4532 Metric)
  • Mounting: SMD
  • Current Max: 1A
  • Viewing Angle: 120°
  • Voltage Forward (Vf) (Typ): 2.81V
  • Current Test: 700mA
  • CCT (K): 6500K 5-Step MacAdam Ellipse
  • Flux @ 85°C, Current - Test: 220 lm (Typ)
  • Family Name: LXA7-PW65
  • Introduction Date: March 25, 2012
  • Obsolete / End of Life: Yes
  • Supply and Demand Status: Limited
