Same model may have multiple batches, images only for reference.

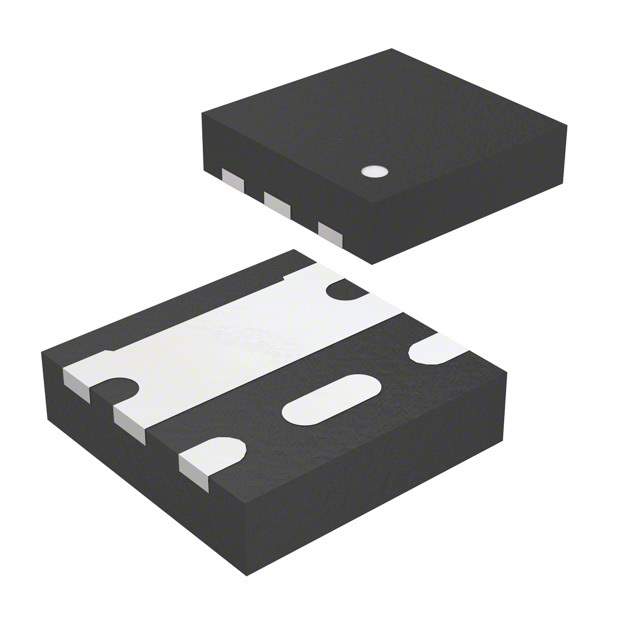

AON1634 Real Image
Same model may have multiple batches, images only for reference.

AON1634

Part No AON1634
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 4A 6DFN
Datasheet
AON1634 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 10V
Gate-Source Threshold Voltage 1.5V @ 250μA
Max Gate Charge 10nC @ 10V
Max Input Capacitance 245pF @ 15V
Maximum Gate-Source Voltage ±12V
Power Dissipation (Max) 1.8W (Ta)
Maximum Rds On at Id,Vgs 54 mOhm @ 4A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-DFN (1.6x1.6)
Dimension 6-PowerUFDFN
Win Source Part Number 1016997-AON1634
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AON1634 CAD Model

Description

The Alpha & Omega Semiconductor Inc. MOSFET is a high-performance N-channel polarity electronic component.

  • Manufacturer: Alpha & Omega Semiconductor Inc.
  • Channel Type: N-channel
  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current: 4A @ 25°C
  • Gate-Source Threshold Voltage: 1.5V @ 250μA
  • Maximum Gate Charge: 10nC @ 10V
  • Maximum Input Capacitance: 245pF @ 15V
  • Maximum Rds On @ Id,Vgs: 54 mOhm @ 4A, 10V
  • Power Dissipation: 1.8W (Ta)
  • Operating Temperature: -55°C to 150°C (TJ)
  • Package: 6-DFN (1.6x1.6)
  • Mounting Technology: SMD (SMT)
  • Supply and Demand: Balanced
