Same model may have multiple batches, images only for reference.

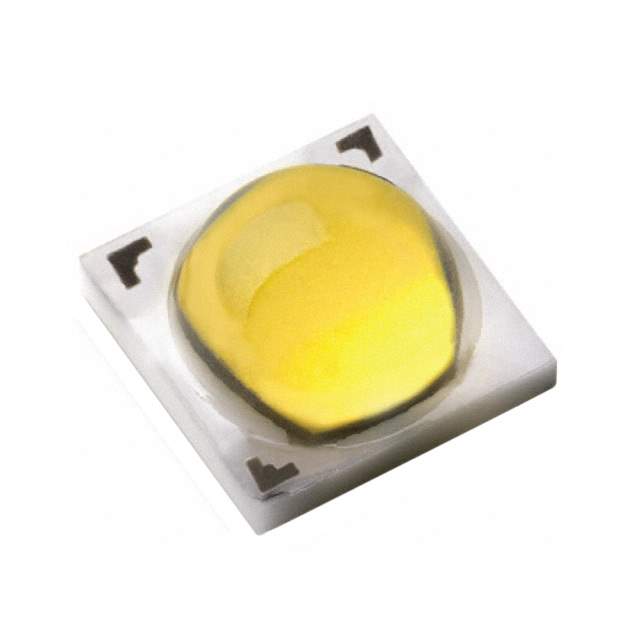

LXH8-FW40-3 Real Image
Same model may have multiple batches, images only for reference.

LXH8-FW40-3

Part No LXH8-FW40-3
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON NEU WHITE 4000K 3SMD / LED Lighting series White, Neutral 4000K 3-Step MacAdam Ellipse 2.8V 700mA 120° 2-SMD, No Lead Exposed Pad
Datasheet
LXH8-FW40-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lumileds
Series LUXEON T
Package Tape & Reel
Product Status Obsolete
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Flux @ 85°C, Current - Test 212lm (Typ)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.8V
Lumens/Watt @ Current - Test 108 lm/W
CRI (Color Rendering Index) 80
Current - Max 1.2A
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead Exposed Pad
Dimension 0.146" L x 0.146" W (3.70mm x 3.70mm)
Height - Seated (Max) 0.083" (2.12mm)
Thermal Resistance of Package 3°C/W
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1014-1,1417-1014-6,1417-1014-2-ND,1417-1014-1-ND,1417-1014-1,1416-1014-2,1417-1014-2,1416-1014-6,1417-1014-6-ND
Standard Package 1,000
Win Source Part Number 995233-LXH8-FW40-3
Ultra Librarian 3D Model Ultra Librarian LXH8-FW40-3 CAD Model

Description

The Lumileds LUXEON T LXH8-FW40-3 is a white neutral color LED lighting that provides a viewing angle of 120 degrees.

  • Manufacturer: Lumileds
  • Series: LUXEON T
  • Part Number: LXH8-FW40-3
  • Color: White Neutral
  • Viewing Angle: 120 degrees
  • Package: Tape and Reel
  • Mounting: SMD (SMT)
  • Height: 0.083 inches (Max)
  • Forward Voltage: 2.8V
  • Maximum Current: 1.2A
  • CCT (K): 4000K 3-Step MacAdam Ellipse
  • Luminous Flux: 212lm (Typ) @ 85°C, Current - Test
  • CRI: 80
  • Thermal Resistance: 3 degrees C/W
