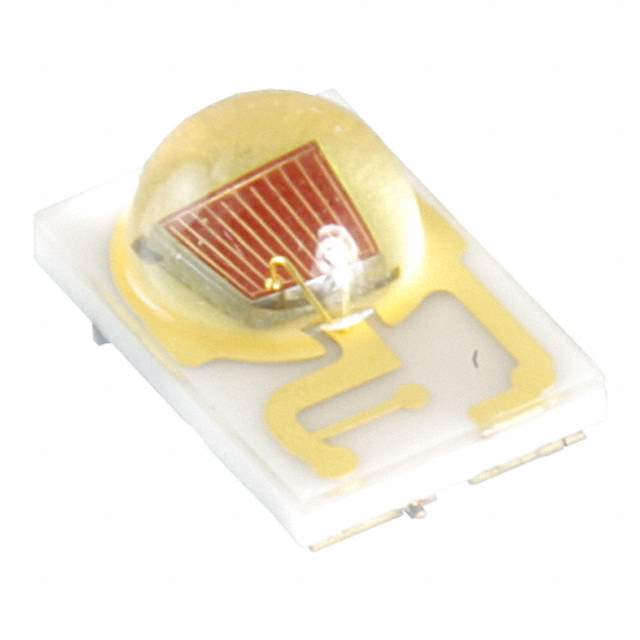

LXM2-PH01-0070 Real Image
Same model may have multiple batches, images only for reference.

LXM2-PH01-0070

Part No LXM2-PH01-0070
Manufacturer Lumileds
Catalog LED Lighting - Color
Description LED LUXEON REBEL ORG 617NM SMD  /  LED Lighting Color series Red-Orange 617nm (Typ) 1812 (4532 Metric)
Datasheet
LXM2-PH01-0070 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - Color
Mfr Lumileds
Series LUXEON Rebel Color
Package Tape & Reel
Color Red-Orange
Wavelength 617nm (Typ)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.1V
Lumens/Watt @ Current - Test 98 lm/W
Current - Max 700mA
Luminous Flux @ Current/Temperature 72lm (Typ)
Temperature - Test 25°C
Viewing Angle 125°
Mounting SMD (SMT)
Package / Case 1812 (4532 Metric)
Supplier Device Package SMD
Dimension 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) 0.083" (2.10mm)
Thermal Resistance of Package 8°C/W
Base Product Number LXM2-PH01
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1417-1026-2,1417-1026-1-ND,1416-1026-2,1416-1026-1,1417-1026-1,1417-1026-2-ND,1416-1026-6,1417-1026-6,1417-1026-6-ND
Standard Package 1,000
Win Source Part Number 1073223-LXM2-PH01-0070
Ultra Librarian 3D Model Ultra Librarian LXM2-PH01-0070 CAD Model

Description

The Lumileds LUXEON Rebel Color series is a high-quality optoelectronic component that is ideal for LED lighting applications.

  • Color: Red-Orange
  • Packaging: Tape and Reel
  • Maximum Current: 700mA
  • Viewing Angle: 125 degrees
  • Forward Voltage: 2.1V
  • Wavelength: 617nm
  • Thermal Resistance: 8 degrees Celsius per watt
  • Package Dimensions: 0.177 inches x 0.120 inches
  • Standard Package Quantity: 1,000
