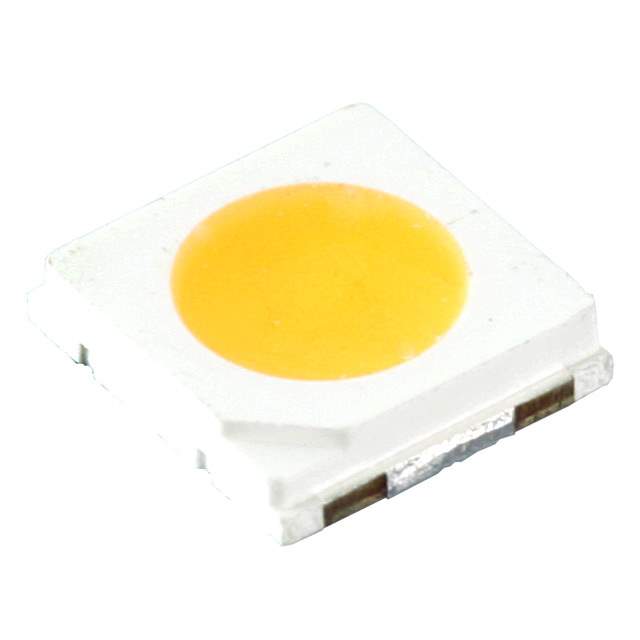

MXA8-PW35-H001 Real Image
Same model may have multiple batches, images only for reference.

MXA8-PW35-H001

Part No MXA8-PW35-H001
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON WARM WHITE 3500K 2SMD  /  LED Lighting series White, Warm 3500K 2.9V 100mA 115° 1414 (3535 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lumileds
Series LUXEON 3535L
Package Tape & Reel
Color White, Warm
CCT (K) 3500K
Flux @ 25°C, Current - Test 46lm (Typ)
Current - Test 100mA
Voltage - Forward (Vf) (Typ) 2.9V
Lumens/Watt @ Current - Test 159 lm/W
CRI (Color Rendering Index) 80
Current - Max 300mA
Viewing Angle 115°
Mounting SMD (SMT)
Package / Case 1414 (3535 Metric)
Supplier Device Package 3535
Dimension 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) 0.031" (0.80mm)
Thermal Resistance of Package 18°C/W
Base Product Number MXA8-PW35
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1519-1,1416-1519-2,1416-1519-6
Standard Package 5,000
Win Source Part Number 1187540-MXA8-PW35-H001
Ultra Librarian 3D Model Ultra Librarian MXA8-PW35-H001 CAD Model

Description

The LUXEON 3535L series from Lumileds is a high-quality optoelectronic component that is ideal for LED lighting applications. These components are available in white and warm colors and come in a tape and reel package.

  • Maximum Current: 300mA
  • Viewing Angle: 115 degrees
  • Forward Voltage: 2.9V
  • CCT: 3500K
  • CRI: 80
  • Thermal Resistance: 18 degrees Celsius per watt
  • Dimensions: 0.138 inches by 0.134 inches
  • Standard Package: 5,000
