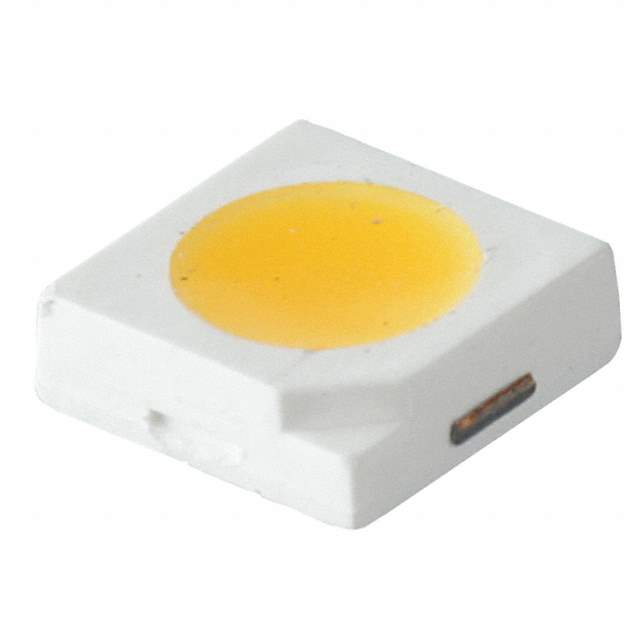

MXM8-PW65-0000 Real Image
Same model may have multiple batches, images only for reference.

MXM8-PW65-0000

Part No MXM8-PW65-0000
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON COOL WHITE 6500K 2SMD
Datasheet
MXM8-PW65-0000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Lumileds
Packaging Reel - TR
Status Obsolete(EOL)
Color White, Cool
CCT (K) 6500K
Flux @ 25°C, Current - Test 36 lm (Typ)
Current - Test 100mA
Forward Voltage 3.1V
Lumens/Watt @ Current - Test 116 lm/W
CRI (Color Rendering Index) 80
Current - Max 150mA
Viewing Angle 115°
Mounting SMD (SMT)
Case / Package 3535
Height - Seated (Max) 0.053" (1.35mm)
Thermal Resistance of Package 20°C/W
Win Source Part Number 124629-MXM8-PW65-0000
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MXM8-PW65-0000 CAD Model

Description

The Lumileds MXM8-PW65-0000 LED package is a white and cool LED package that has a viewing angle of 115 degrees.

  • The package has a height of 1.35mm and a dimension of 3535.
  • The package supports a maximum current of 150mA and has a forward voltage of 3.1V.
  • The color temperature of this LED package is 6500K with a lumens/watt of 116 lm/W.
  • The package has a thermal resistance of 20 degrees Celsius per watt and is packaged in a reel - TR.
  • The supply and demand status of this product is balanced.
