CXM-14-35-80-36-AC40-F5-3

Part No CXM-14-35-80-36-AC40-F5-3
Manufacturer Luminus Devices Inc.
Catalog LED Lighting - COBs, Engines, Modules

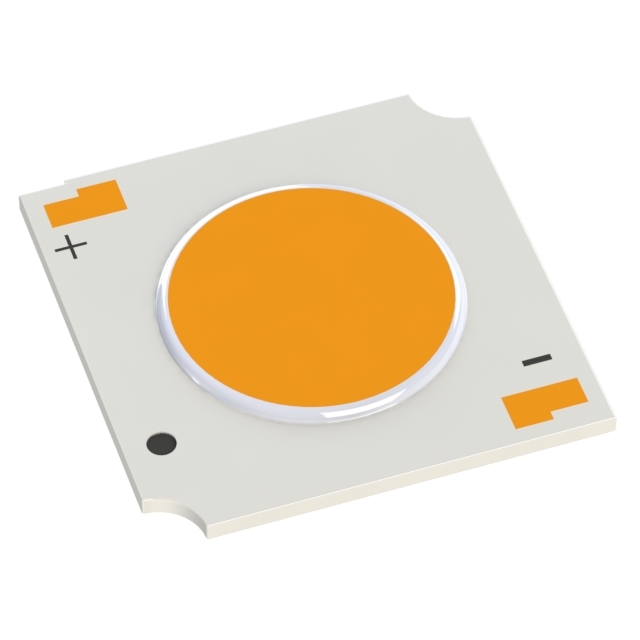

Description LED COB CXM-14 GEN4 WHT SQ 3500K
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Chip On Board (COB)
Color White, Warm
CCT (K) 3500K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 4065lm (Typ)
Current - Test 720mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 33.5V
Lumens/Watt @ Current - Test 169 lm/W
Current - Max 2A
CRI (Color Rendering Index) 80
Viewing Angle 120°
Size / Dimension 19.00mm L x 19.00mm W
Height 1.37mm
Light Emitting Surface (LES) 14.50mm Dia
Lens Type Flat
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1571447-CXM-14-35-80-36-AC40-F5-3
Ultra Librarian 3D Model Ultra Librarian CXM-14-35-80-36-AC40-F5-3 CAD Model
