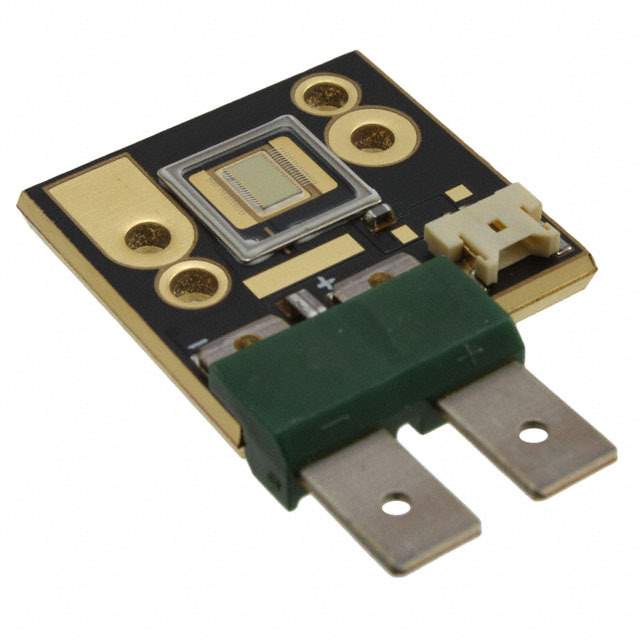

PT-120-G-C11-MPB Real Image
Same model may have multiple batches, images only for reference.

PT-120-G-C11-MPB

Part No PT-120-G-C11-MPB
Manufacturer Luminus Devices Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description BIG CHIP LED HB MODULE GREEN
Datasheet
PT-120-G-C11-MPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Luminus Devices Inc.
Status Obsolete(EOL)
Type LED Module
Color Green
Wavelength 528nm
Configuration Rectangle
Flux @ Current/Temperature - Test 2450 lm (Typ)
Current - Test 18A
Temperature - Test 40°C
Forward Voltage 4.9V
Lumens/Watt @ Current - Test 28 lm/W
Features With Connector
Height 5.61mm
Light Emitting Surface (LES) 2.60mm L x 4.63mm W
Lens Type Flat
Win Source Part Number 210304-PT-120-G-C11-MPB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 10
Ultra Librarian 3D Model Ultra Librarian PT-120-G-C11-MPB CAD Model

Description

The 210304-PT-120-G-C11-MPB is a high-popularity LED module product manufactured by Luminus Devices Inc.

  • Color: Green
  • Wavelength: 528nm
  • Forward Voltage: 4.9V
  • Current Test: 18A
  • Flux: 2450 lm (Typ) @ 40°C
  • Ideal for: Automotive, industrial, and medical equipment
