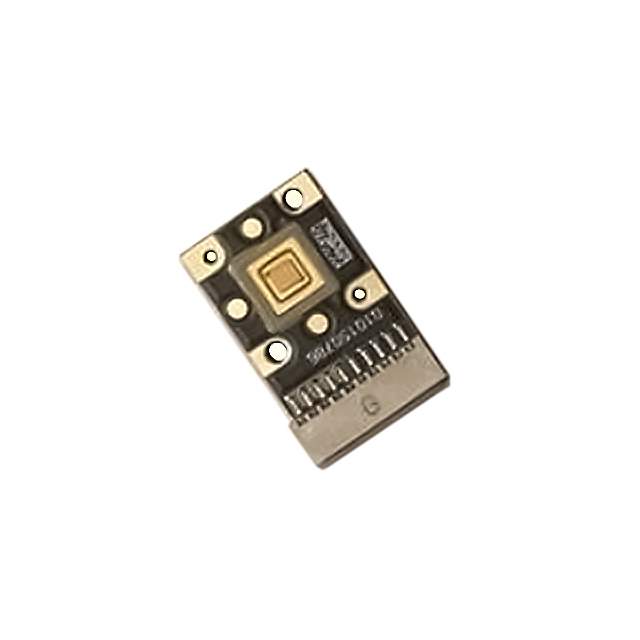

PT-54-G-L31-MPJ Real Image
Same model may have multiple batches, images only for reference.

PT-54-G-L31-MPJ

Part No PT-54-G-L31-MPJ
Manufacturer Luminus Devices Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description BIG CHIP LED HB MODULE GREEN
Datasheet
PT-54-G-L31-MPJ Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Luminus Devices Inc.
Series PT-54
Packaging Tray
Type LED Module
Color Green
Wavelength 525nm
Configuration Rectangle
Flux @ Current/Temperature - Test 2400 lm (2000 lm ~ 2800 lm)
Current - Test 13.5A
Temperature - Test 40°C
Voltage - Forward (Vf) (Typ) 5.2V
Lumens/Watt @ Current - Test 34 lm/W
Features With Connector
Size 26.50mm L x 16.00mm W
Height 6.40mm
Light Emitting Surface (LES) 2.00mm L x 2.70mm W
Lens Type Flat
Win Source Part Number 759438-PT-54-G-L31-MPJ
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian PT-54-G-L31-MPJ CAD Model

Description

The Luminus Devices Inc. PT-54 LED module is a high-performance LED lighting COBs engines module that emits green light at a wavelength of 525nm.

  • Viewing Angle: 6.40mm
  • Shape: Rectangle
  • Size: 26.50mm L x 16.00mm W
  • Forward Voltage (Typical): 5.2V
  • Maximum DC Forward Current: 13.5A
  • Applications: Optoelectronics, LED emitters, infrared, UV, visible, LED lighting COBs engines modules
