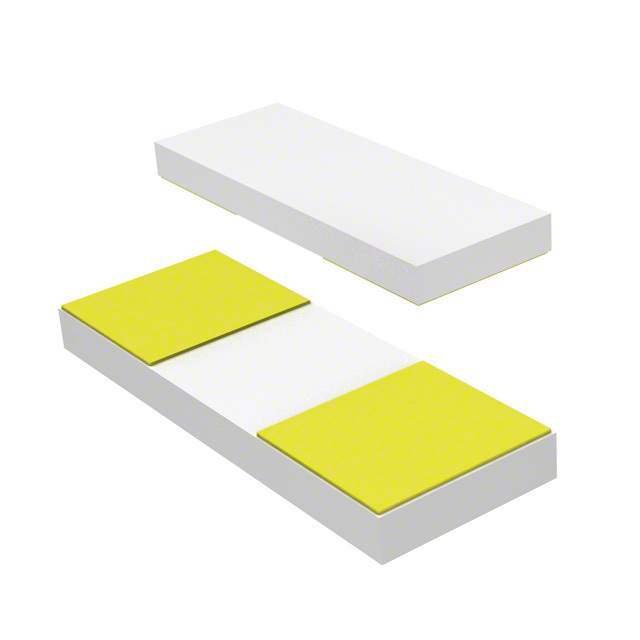

MADP-000907-14020W Real Image
Same model may have multiple batches, images only for reference.

MADP-000907-14020W

Part No MADP-000907-14020W
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description RF DIODE PIN 45V 100MW 2FLIPCHIP / RF Diode PIN - Single 45V 100 mW 2-FlipChip
Datasheet
MADP-000907-14020W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - RF
Mfr MACOM Technology Solutions
Package Tray
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 45V
Capacitance @ Vr, F 0.03pF @ 10V, 1MHz
Resistance @ If, F 7Ohm @ 10mA, 1GHz
Power Dissipation (Max) 100 mW
Temperature Range - Operating 175°C (TJ)
Package / Case 2-FlipChip
Supplier Device Package 2-FlipChip
Base Product Number MADP-000907
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 1465-1780
Standard Package 100
Win Source Part Number 967264-MADP-000907-14020W
Ultra Librarian 3D Model Ultra Librarian MADP-000907-14020W CAD Model

Description

The 967264-MADP-000907-14020W electronic component is a high-performance PIN - Single diode that is widely used in the electronics industry. This SMD (SMT) component comes in a tray packaging and is RoHS compliant.

  • Application: This electronic component is an ideal choice for high-frequency applications that require reliable performance and durability.
  • Alternative: The 967264-MADP-000907-14020W electronic component is an alternative to S1A-13-F, 1N4001-T, RS1A-13-F, BAP55LX,315, BAP70-02,115, and BAP70-03,115.
