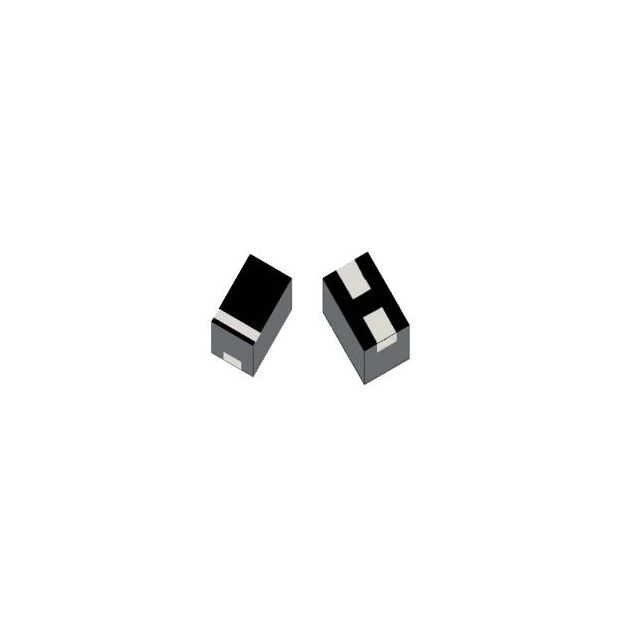

The MSWSE-020-05 is a silicon PIN diode SPDT switch manufactured by M/A-Com Technology Solutions (now part of MACOM). It's designed for a wide range of applications requiring high isolation, low insertion loss, and fast switching speed. This switch is commonly used in wireless communication systems, test equipment, and radar applications.

Applications

• Wireless communication systems
• Test and measurement equipment
• Radar systems
• Switching matrixes
• RF signal routing

Features

• SPDT (Single Pole Double Throw) configuration
• Low insertion loss
• High isolation
• Fast switching speed
• Silicon PIN diode technology

Benefits

• Provides efficient signal routing
• Minimizes signal loss
• Reduces signal leakage and interference
• Enables high-speed switching operations
• Offers reliable performance in various applications

Additional Details

The MSWSE-020-05 typically operates over a frequency range of DC to 20 GHz. It features an insertion loss of less than 1 dB and an isolation of greater than 30 dB. The switching speed is typically in the nanosecond range. The switch requires a bias voltage for proper operation. It is available in a surface mount package for easy integration into electronic circuits. The operating temperature range is -55°C to +125°C. The device is designed to withstand high input power levels.
