Same model may have multiple batches, images only for reference.

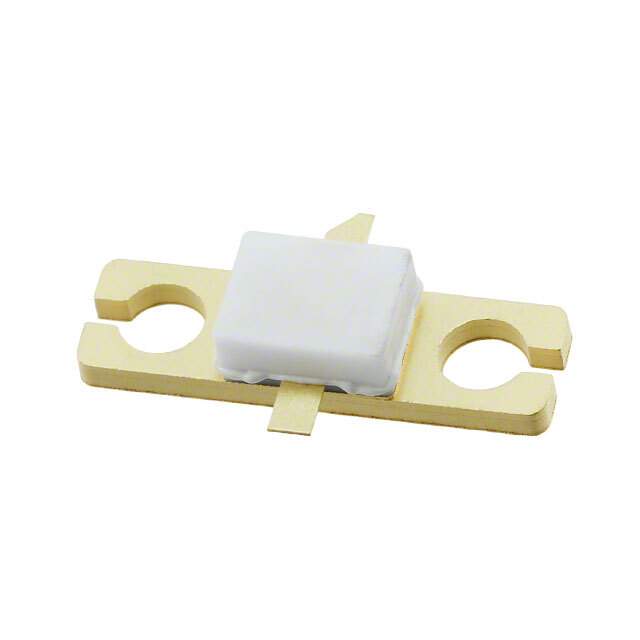

NPTB00025B Real Image
Same model may have multiple batches, images only for reference.

NPTB00025B

Part No NPTB00025B
Manufacturer M/A-Com Technology Solutions
Catalog Transistors - FETs, MOSFETs - RF
Description HEMT N-CH 28V 25W DC-4000MHZ / Trans JFET N-CH 100V 5.4A GaN 3-Pin AC200BM-F
Datasheet
NPTB00025B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer M/A-Com Technology Solutions
Packaging Tray
Transistor Type HEMT
Frequency 0Hz ~ 4GHz
Gain 13.5dB
Voltage - Test 28V
Current Rating 5.4A
Current - Test 225mA
Voltage Rating DC 100V
Win Source Part Number 790781-NPTB00025B
Popularity Medium
Supply and Demand Status Limited
Family Name NPTB00025B
Introduction Date May 14, 2009
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NPTB00025B CAD Model

Description

The NPTB00025B is a HEMT transistor from M/A-Com Technology Solutions.

  • Current Rating: 5.4A
  • Frequency Range: 0Hz ~ 4GHz
  • Gain: 13.5dB
  • Voltage Test: 28V
  • Current Test: 225mA
  • ECCN: EAR99
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2027
