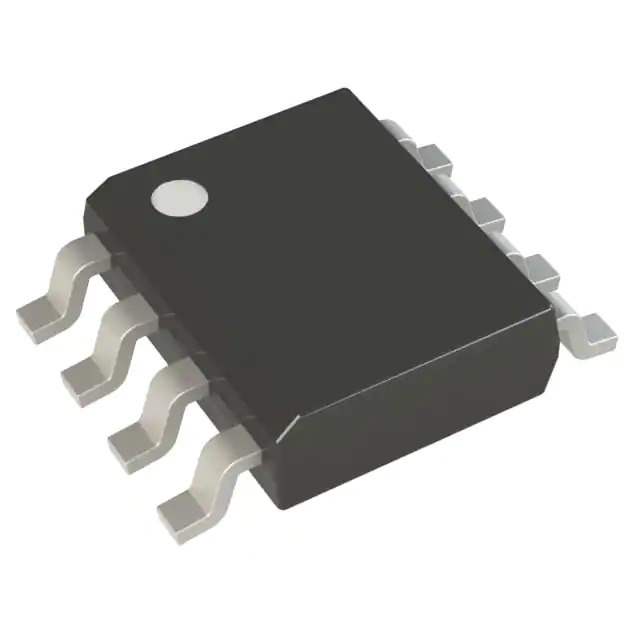

MX25R8035FM1IL0 Real Image
Same model may have multiple batches, images only for reference.

MX25R8035FM1IL0

Part No MX25R8035FM1IL0
Manufacturer Macronix
Catalog Memory
Description IC FLASH 8MBIT SPI/QUAD 8SOP / FLASH - NOR Memory IC 8Mbit SPI - Quad I/O 33 MHz 8-SOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Macronix
Series MXSMIO™
Package Tube
Product Status Active
Programmable Not Verified
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 8Mbit
Memory Organization 1M x 8
Memory Interface SPI - Quad I/O
Clock Frequency 33 MHz
Write Cycle Time - Word, Page 100µs, 10ms
Voltage - Supply 1.65V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOP
Base Product Number MX25R8035
Standard Package 98 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0071
Win Source Part Number 849720-MX25R8035FM1IL0
Ultra Librarian 3D Model Ultra Librarian MX25R8035FM1IL0 CAD Model

Description

The MX25R8035FM1IL0 is an 8Mbit FLASH - NOR memory integrated circuit (IC) from Macronix. It is a non-volatile memory with a voltage supply range of 1.65V to 3.6V.

  • Memory Type: FLASH - NOR
  • Memory Size: 8Mbit
  • Voltage Supply: 1.65V to 3.6V
  • Memory Organization: 1M x 8
  • Clock Frequency: 33 MHz
  • Write Cycle Time (Word/Page): 100µs / 10ms
  • Memory Interface: SPI - Quad I/O
  • Package: Tube
  • Standard Package Quantity: 98 pcs
  • Operating Temperature: -40°C to 85°C
  • Status: Active
