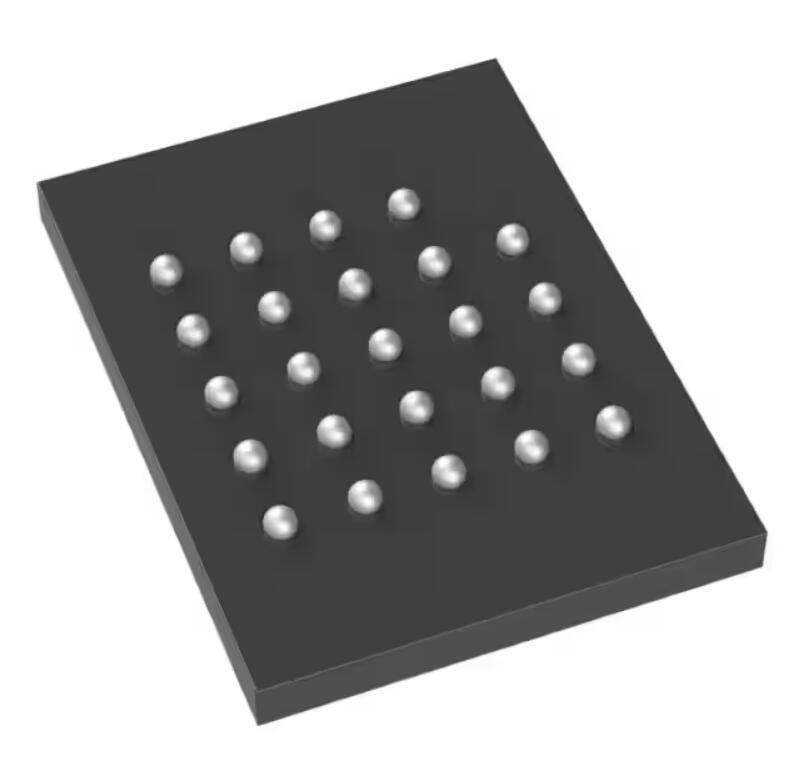

The MX66U1G45GXDI54 is a 1G-bit (128M x 8) CMOS Quad SPI Multi-I/O Flash memory manufactured by Macronix. It is designed for high-performance, low-power applications, providing fast read/write operations and reliable data storage.

Applications:

• Embedded Systems: Used for storing firmware, boot code, and application data in embedded devices.
• Automotive Electronics: Employed in automotive infotainment systems, instrument clusters, and telematics units.
• Industrial Control Systems: Provides storage for configuration data and program code in industrial automation equipment.
• Networking Devices: Used in routers, switches, and other networking devices for storing boot code and configuration files.
• Consumer Electronics: Integrated into digital TVs, set-top boxes, and other consumer electronics devices.

Features:

• Quad SPI Interface: Supports high-speed data transfer using the Quad SPI protocol.
• Multi-I/O Support: Allows for flexible data access with single, dual, or quad I/O modes.
• Low Power Consumption: Designed for low-power operation, extending battery life in portable devices.
• Wide Voltage Range: Operates over a wide voltage range, providing compatibility with different systems.
• Small Package Size: Available in compact packages, saving board space.

Benefits:

• High Performance: Quad SPI interface enables fast read/write operations.
• Flexibility: Multi-I/O support allows for flexible data access.
• Low Power: Low power consumption extends battery life.
• Reliability: Provides reliable data storage with high endurance.
• Compact Size: Small package size allows for integration into space-constrained designs.

Additional Details:

The MX66U1G45GXDI54 flash memory features a 1G-bit capacity, organized as 128M x 8 bits. It supports standard SPI and Quad SPI protocols, providing compatibility with a wide range of microcontrollers and processors. Key specifications include read/write speeds, supply voltage range, and operating temperature range. The device also features advanced security features, such as hardware write protection and sector protection. It is commonly available in WSON or SOIC packages. The operating temperature range is typically -40°C to +85°C. The packaging is tape and reel for automated assembly processes. The MX66U1G45GXDI54 is suitable for applications requiring high-speed, low-power, and reliable flash memory storage.
