MAX5431AEUB Precision Potentiometer from Maxim Integrated

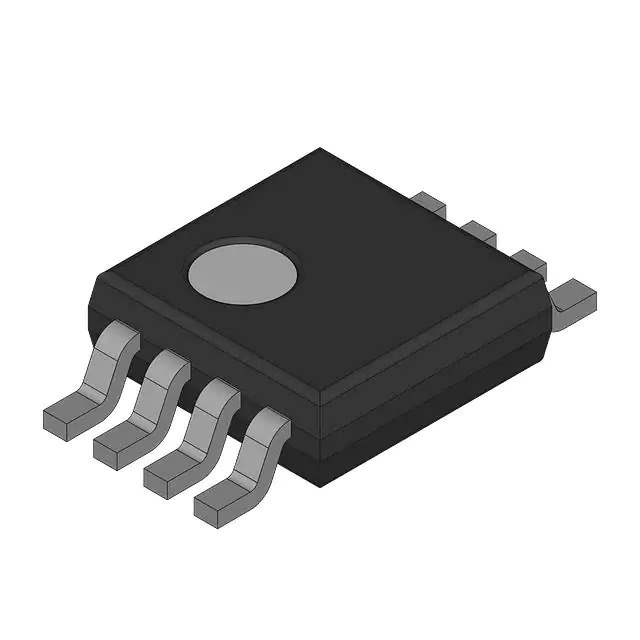

The MAX5431AEUB is a high-precision digital potentiometer designed by Maxim Integrated, a leader in analog and mixed-signal products. This digitally-controlled variable resistor offers a reliable solution for applications requiring precise resistance tuning. The MAX5431AEUB is housed in a compact 10-pin µMAX package, making it suitable for space-constrained applications.

This digital potentiometer features a 10-bit resolution, providing 1024 taps that allow for fine adjustment of the resistance value. The device operates from a single +2.7V to +5.5V supply, making it versatile for various low-voltage applications. Its power supply flexibility, combined with a low temperature coefficient of 35ppm/°C, ensures stable performance across a wide range of operating conditions.

The MAX5431AEUB is equipped with an up/down interface for adjustment, which can be controlled via simple push-button interfaces or microcontrollers, making it user-friendly for both manual adjustments and automated systems. The non-volatile memory (EEPROM) ensures that the last programmed resistance value is retained even after power is removed, providing a persistent setting across power cycles.

One of the key features of the MAX5431AEUB is its end-to-end resistance options, which range from 10kΩ to 100kΩ. This allows for a broad spectrum of applications, including but not limited to adjustable power supplies, LCD screen calibration, and audio volume control. Additionally, the device's wiper resistance is as low as 40Ω typical, which contributes to its high accuracy and minimal signal distortion.

For designers and engineers looking for a robust digital potentiometer, the MAX5431AEUB offers a blend of precision, durability, and ease of use. Its digital interface simplifies integration into digital systems, while its precision makes it an ideal choice for critical applications where exact resistance settings are crucial.

Overall, the MAX5431AEUB from Maxim Integrated is a versatile and reliable component that meets the demands of modern electronic designs, delivering precision and performance in a small form factor.
