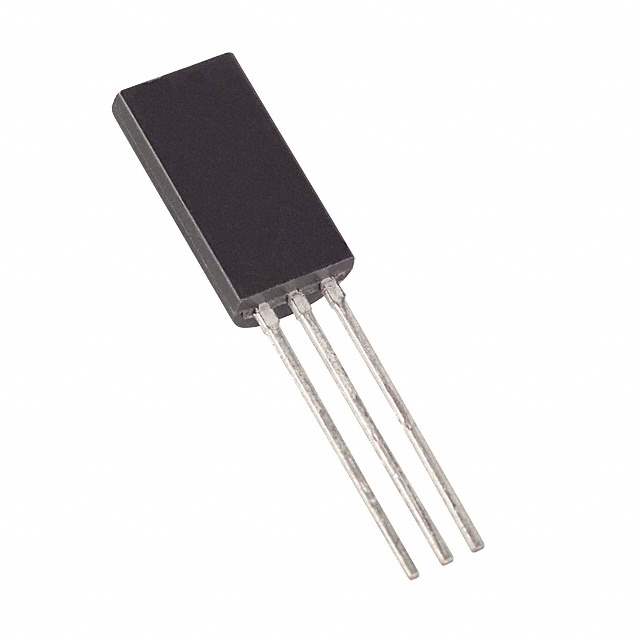

The Maxim Integrated DS1821 is a versatile and programmable thermostat that offers a compact and efficient solution for temperature control in a wide range of applications. Housed in a convenient TO-92 package, this device is designed to provide precise temperature regulation and monitoring, making it an ideal choice for system designers seeking reliability and accuracy.
This programmable thermostat features a user-selectable temperature set point range from -55°C to +125°C, allowing for customization according to specific system requirements. The DS1821 provides two thermostat outputs: an active-high overtemperature signal and an active-low undertemperature signal. These outputs can directly interface with a microcontroller or other control circuitry, enabling automated responses when temperature thresholds are crossed.
One of the key benefits of the DS1821 is its ease of use. It can be easily programmed through a 1-Wire interface, which minimizes the number of wires required for communication, thus simplifying the design and reducing the overall cost. The 1-Wire interface also allows for multiple DS1821 devices to be connected on the same bus, enabling the monitoring and control of several temperature zones within a system.
Additional features of the DS1821 include its nonvolatile (NV) temperature alarm triggers that are stored in on-chip EEPROM, ensuring that settings are preserved even when the power is removed. The device also offers a direct-to-digital temperature reading capability, which eliminates the need for external A/D converters and simplifies integration into digital systems.
With its small form factor, programmability, and robust feature set, the Maxim Integrated DS1821 Programmable Thermostat is a smart choice for applications such as personal computers, office electronics, telecommunications systems, and industrial controls, where accurate temperature control and monitoring are critical for performance and reliability.
