The DS21448LN+ is a high-performance, versatile T1/E1/J1 transceiver from Maxim Integrated, designed to meet the rigorous demands of communication infrastructure. This integrated circuit provides a complete interface between digital equipment and T1, E1, or J1 lines, making it an ideal choice for telecommunications equipment, including PBXs, digital loop carriers, and mobile base stations.

Key Features

• Multi-Standard Support: The DS21448LN+ supports T1, E1, and J1 standards, allowing for flexible deployment in various telecommunication systems worldwide.
• Integrated Jitter Attenuator: This device includes an on-chip jitter attenuator, improving signal integrity and reducing data errors in transmission.
• Programmable Features: Users can program numerous features such as line build-out and receiver equalization, which enables customization for different system requirements.
• Robust Framing Options: The transceiver supports multiple framing formats including D4, ESF, and CAS for T1, as well as CRC4, non-CRC4, and CAS for E1.
• Diagnostic Tools: Built-in diagnostic capabilities, including loopback modes and error counters, facilitate easier maintenance and troubleshooting.

Applications

The DS21448LN+ is suitable for a wide range of applications within the telecommunications field. Its high level of integration and support for multiple standards make it a go-to component for:

• Telecommunication Switching Systems
• Channel Service Units/Data Service Units (CSU/DSUs)
• Integrated Access Devices (IADs)
• Wireless Base Station Controllers
• Signal Conversion Equipment

Technical Specifications

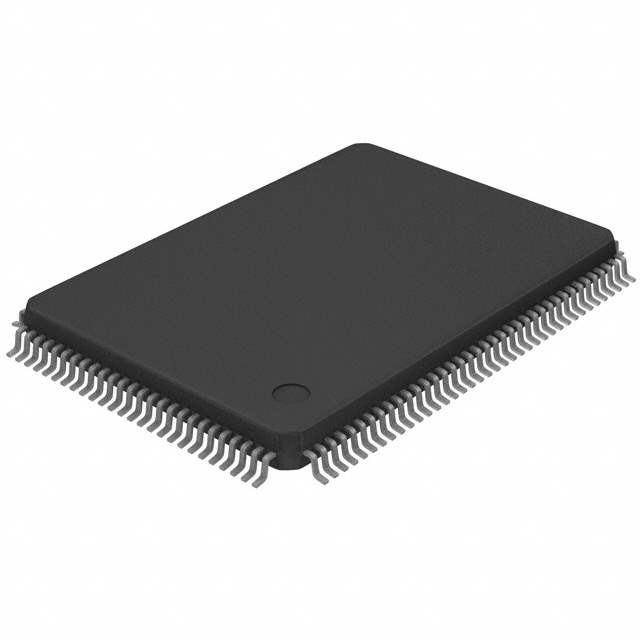

The DS21448LN+ operates over a temperature range of -40°C to +85°C and is available in a 100-pin LQFP package. It requires a single 3.3V power supply for operation and includes power-down and sleep modes for energy efficiency. The device's small footprint and low power consumption make it an excellent choice for space-constrained and power-sensitive applications.
