Maxim Integrated MAX1181ECM Product Overview

The MAX1181ECM is a high-performance, low-power, 16-bit analog-to-digital converter (ADC) from Maxim Integrated, designed to deliver precision and efficiency for a wide array of applications. This ADC is part of Maxim's commitment to providing state-of-the-art data conversion solutions that meet the rigorous demands of modern electronic systems.

Key Features

• High Resolution: The MAX1181ECM offers 16-bit resolution, ensuring accurate and precise digital representation of analog signals.
• Dual-Channel Operation: This ADC features two fully differential channels, allowing for simultaneous sampling and increased system throughput.
• High-Speed Interface: With a maximum sampling rate of 200ksps (kilo-samples per second), this device caters to applications requiring fast data acquisition.
• Low Power Consumption: It operates with a low power supply voltage from +2.7V to +3.6V, making it ideal for battery-powered and portable devices.
• Internal Reference: The MAX1181ECM includes an internal reference voltage, reducing the need for external components and simplifying design.
• Flexible Input Range: The input range is configurable, allowing for both unipolar and bipolar signal measurements, which enhances its versatility in different application scenarios.
• Serial Interface: It features a serial interface compatible with SPI, QSPI, and MICROWIRE protocols for easy integration into digital systems.

Applications

The versatility of the MAX1181ECM makes it suitable for a broad spectrum of applications, including but not limited to:

• Data acquisition systems
• Medical instruments
• Industrial process control
• Instrumentation
• Battery-powered devices

Design and Integration

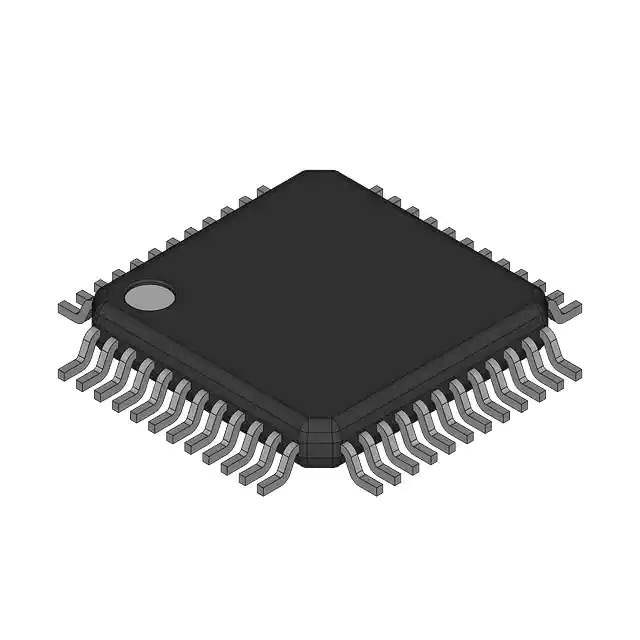

The MAX1181ECM comes in a compact 48-pin LQFP (Low-Profile Quad Flat Package), which is conducive to space-constrained designs. Its digital interface supports easy integration with microcontrollers and digital signal processors, reducing development time and accelerating time-to-market for products.

Maxim Integrated's MAX1181ECM ADC exemplifies a blend of performance, power efficiency, and flexibility, making it a top choice for engineers and designers looking to enhance the capabilities of their electronic systems.
