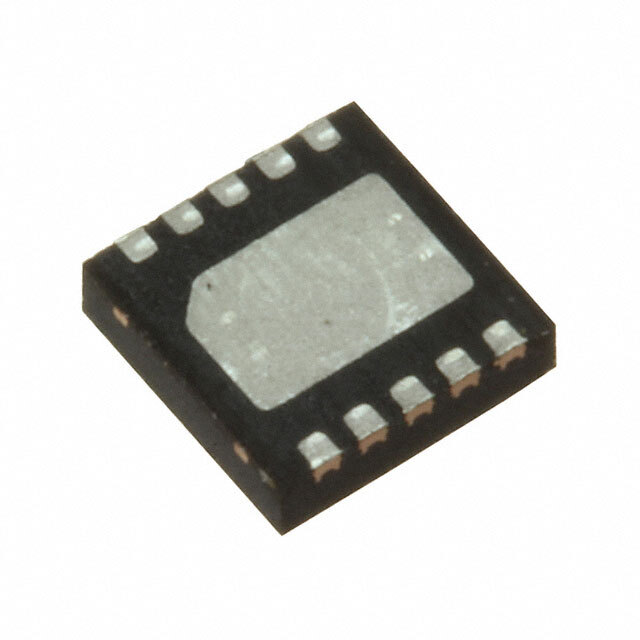

The MAX14550AEETB+T from Maxim Integrated is a state-of-the-art USB accessory charger adapter emulation IC designed to enhance the charging capabilities of portable devices. This IC is specifically tailored for applications that require emulation of USB charger detection, allowing devices to optimize their charge rates when connected to various USB hosts or dedicated charging ports.

Key Features

• Charger Adapter Emulation: Enables devices to be compatible with a wide range of USB chargers by emulating the necessary charger signatures.
• Automatic Charger Configuration: The IC automatically detects the type of connected charger and configures itself accordingly for optimal charging.
• High Integration: Integrates a USB Hi-Speed switch with a charge pump, reducing the need for external components and saving PCB space.
• Versatile Power Supply: Operates over a wide range of input voltages, making it suitable for various USB-powered devices.
• Thermal Protection: Includes built-in thermal overload protection to safeguard the device under extreme operating conditions.

Applications

Due to its versatile nature, the MAX14550AEETB+T is ideal for a broad spectrum of applications, including but not limited to:

• Smartphones and Tablets
• Portable Media Players
• GPS Devices
• Handheld Gaming Consoles
• Other USB-Powered Gadgets

Technical Specifications

• Package: 30-WLP (4x4)
• Operating Temperature Range: -40°C to +85°C
• Hi-Speed USB 2.0 Switch: Low on-resistance for the USB data lines.

The MAX14550AEETB+T is available in a lead-free, 30-bump, wafer-level package (WLP), which is not only environmentally friendly but also conducive to modern, compact device designs. Its temperature range ensures reliable operation in diverse environments.

With Maxim Integrated's commitment to quality and reliability, the MAX14550AEETB+T is a superior choice for designers looking to enhance the USB charging experience in their products.
