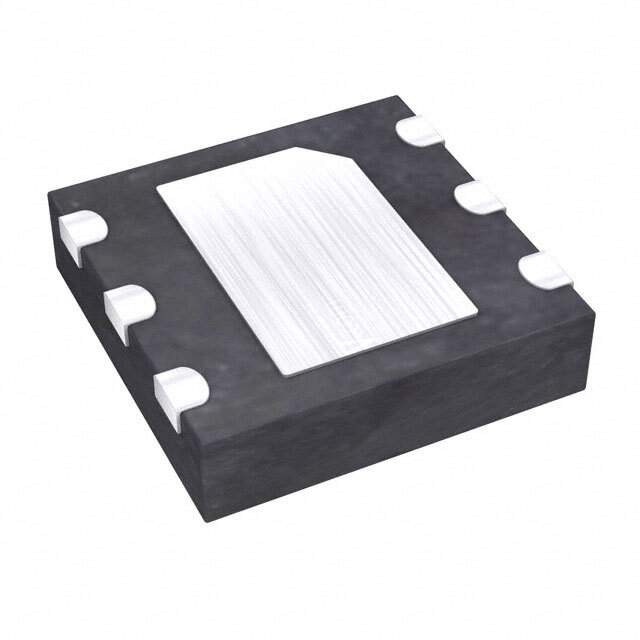

MAX15006BATT/V+T

Part No MAX15006BATT/V+T
Manufacturer Maxim Integrated
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V 50MA 6TDFN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Maxim Integrated
Series Automotive, AEC-Q100
Packaging Reel - TR
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage Input MAX 40V
Output Voltage 5V
Voltage Dropout (Maximum) 0.525V @ 50mA
Output Current 50mA
Operating Supply Current 17μA ~ 150μA
PSRR 66dB (100Hz)
Protection Features Over Temperature, Short Circuit
Operating Temperature Range -40°C ~ 125°C
Mounting SMD
Package 6-WDFN Exposed Pad
Manufacturer Package 6-TDFN-EP (3x3)
Win Source Part Number 701525-MAX15006BATT/V+T
Series MAX series
Popularity Medium
Supply and Demand Status Balance
Family Name MAX15006
Introduction Date October 01, 2006
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian MAX15006BATT/V+T CAD Model

Description

The MAX15006BATT/V+T from Maxim Integrated is a highly reliable, automotive-grade, low-dropout linear voltage regulator designed to deliver a continuous output current of up to 50mA. This component is specifically engineered to meet the stringent requirements of automotive applications, providing a stable and precise voltage supply even under harsh operating conditions.

Key Features

  • Wide Input Voltage Range: The device operates from a 4V to 40V input voltage range, making it suitable for automotive battery-powered applications.
  • Low Dropout Voltage: The MAX15006BATT/V+T maintains regulation with minimal input-to-output voltage differential, enhancing system efficiency.
  • High Output Accuracy: It offers an impressive output voltage accuracy of ±2%, ensuring reliable performance for sensitive electronic components.
  • Thermal and Short-Circuit Protection: Built-in thermal shutdown and short-circuit protection safeguard the device and the application against over-temperature and over-current conditions.
  • Low Quiescent Current: The regulator's quiescent current is optimized for automotive battery-powered applications, contributing to lower power consumption when in operation.

Applications

The MAX15006BATT/V+T is ideal for various automotive applications, including:

  • Automotive Control Modules
  • Power Supplies for Sensors and Microcontrollers
  • Automotive Infotainment Systems
  • Telematics and Navigation Units

Package and Reliability

The device is available in a small, thermally efficient, 8-pin TDFN package with an exposed pad. This package is designed to optimize the thermal performance, which is crucial for maintaining reliability and longevity in automotive applications. The MAX15006BATT/V+T is also AEC-Q100 qualified, ensuring that it meets the automotive industry's reliability standards.

With its robust feature set and compliance with automotive standards, the MAX15006BATT/V+T voltage regulator from Maxim Integrated is an excellent choice for designers looking to enhance the performance and reliability of their automotive electronic systems.
