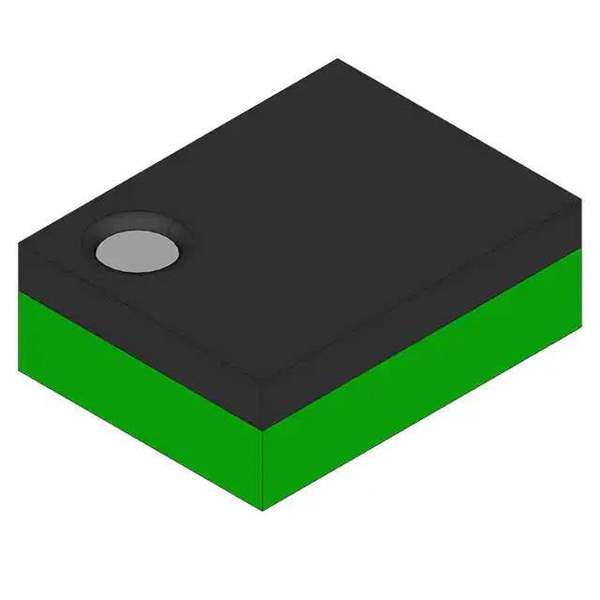

Maxim Integrated MAX1582EBE+T High-Efficiency, High-Brightness LED Driver

The MAX1582EBE+T from Maxim Integrated is a sophisticated high-efficiency driver specifically designed to power high-brightness LEDs. This compact, high-performance component is ideal for a variety of applications, including LCD backlighting, automotive lighting, and other portable devices that require bright, consistent lighting with minimal power consumption.

At the core of the MAX1582EBE+T is a step-up converter with an integrated 36V, 1.5A switch, enabling it to drive several LEDs in series, ensuring uniform brightness and enhancing efficiency. The device is capable of delivering a continuous output current up to 350mA, which can be adjusted via an external resistor. This feature allows for precise control of the LED current, thereby providing consistent luminance and prolonging the life of the LEDs.

One of the key advantages of the MAX1582EBE+T is its high efficiency, which can reach up to 94%. This is made possible through its 1MHz fixed-frequency PWM control, which reduces the size of external components and simplifies the circuit design. Additionally, the device includes a digital brightness control input that allows the brightness level to be adjusted through a PWM signal without the need for an external DAC.

The MAX1582EBE+T also comes with built-in safety features, including overvoltage protection that prevents damage to the device and the LEDs if the output is disconnected during operation. Furthermore, it has thermal shutdown protection that turns off the device if it exceeds the maximum operating temperature, ensuring the safety and reliability of the system.

This LED driver is available in a compact 16-pin QSOP package, making it suitable for space-constrained applications. Its wide input voltage range of 2.6V to 5.5V allows it to be powered by a variety of sources, including single-cell lithium-ion batteries, making it incredibly versatile for portable applications.

Overall, the MAX1582EBE+T is an excellent choice for designers looking to maximize energy efficiency and brightness in their LED lighting applications, while also benefiting from the reliability and performance that Maxim Integrated products are known for.
