Maxim Integrated MAX1817EUB+ Overview

The MAX1817EUB+ is a high-performance, low-dropout linear regulator designed by Maxim Integrated, offering a compact and efficient solution for power management in a wide range of electronic devices. This advanced regulator is well-suited for applications requiring a low-voltage, high-current power source with a minimal voltage drop across the regulator, ensuring stable and reliable operation.

Key Features

• Adjustable Output Voltage: The MAX1817EUB+ provides an adjustable output voltage range from 1.25V to 5V, allowing for flexible use in various applications.
• High Output Accuracy: It delivers a precise output with a low dropout voltage, maintaining a high level of accuracy and performance.
• Low Quiescent Current: The device features a low quiescent current, making it ideal for battery-powered applications where power efficiency is critical.
• Thermal Protection: It is equipped with thermal overload protection, which safeguards the device and the system from overheating.
• Short-Circuit Protection: The built-in short-circuit protection ensures that the device and the connected components are protected in the event of a fault.

Applications

The MAX1817EUB+ is versatile and can be used in a variety of applications, including:

• Notebook Computers
• PDAs and Handheld Devices
• Portable Media Players
• Wireless and DSL Modems
• Other Battery-Powered Devices

Package and Reliability

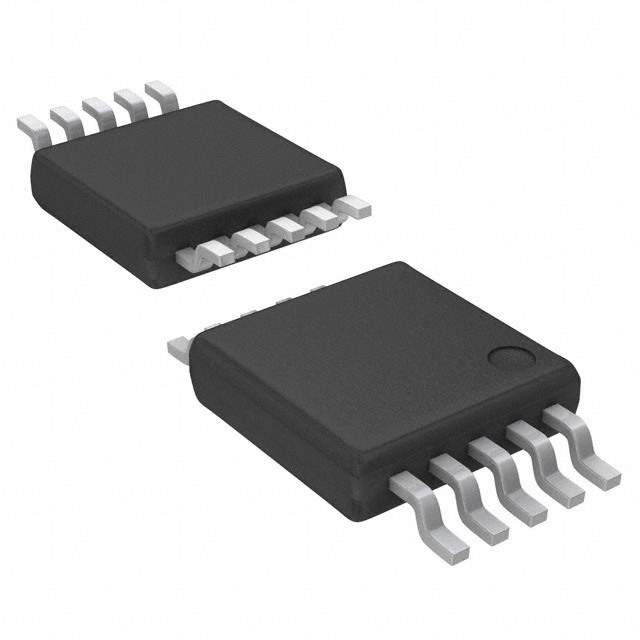

The regulator comes in a microMAX-10 package, which is a space-saving design ideal for compact electronic assemblies. Its small footprint does not compromise on robustness or reliability, making it a top choice for designers looking to optimize board space without sacrificing performance.

Conclusion

In summary, the MAX1817EUB+ from Maxim Integrated is a highly reliable and efficient LDO regulator that offers adjustable output voltage, low quiescent current, and essential protection features. Its versatility and compact form factor make it an excellent choice for a wide range of power-sensitive applications.
