Maxim Integrated MAX2232EEE+T High-Efficiency, Low-Voltage, SiGe RF Power Amplifier

The MAX2232EEE+T from Maxim Integrated is a state-of-the-art RF power amplifier designed for use in 3V portable systems. This high-efficiency, low-voltage amplifier is based on Silicon-Germanium (SiGe) technology, which provides superior performance in terms of frequency response, noise figure, and power consumption. The device is ideal for applications such as FRS radios, 900MHz ISM band applications, and other portable battery-powered devices where power efficiency is crucial.

The MAX2232EEE+T operates within a supply voltage range of 2.7V to 3.3V, making it compatible with most portable power sources. It delivers an output power of +20dBm (100mW) while maintaining a high power-added efficiency (PAE) of 50%, which helps to extend battery life in portable applications. The amplifier also features a low quiescent current of 4mA, further contributing to its energy-saving capabilities.

This RF power amplifier includes an integrated power control feature that provides 30dB of control range, allowing for precise adjustment of the output power to meet specific system requirements. Additionally, the MAX2232EEE+T has an integrated shutdown mode, which reduces the supply current to less than 1µA, thereby minimizing power consumption when the amplifier is not in active use.

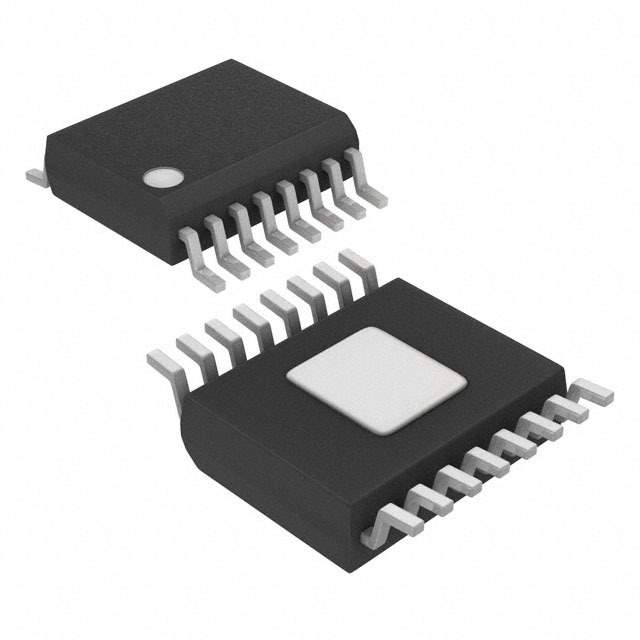

Designed for ease of use, the MAX2232EEE+T is available in a compact 16-pin QSOP package, which is suitable for space-constrained applications. The amplifier's input and output are fully matched to 50Ω, simplifying the design process by eliminating the need for complex external matching networks. This feature also helps to reduce the overall component count and system cost.

Maxim Integrated's commitment to quality ensures that the MAX2232EEE+T meets rigorous performance standards. The component is designed to withstand the demanding conditions of portable electronics, ensuring reliability and longevity in the field. With its combination of high efficiency, low-voltage operation, and advanced features, the MAX2232EEE+T is an excellent choice for designers looking to optimize their RF power amplification needs in portable applications.
