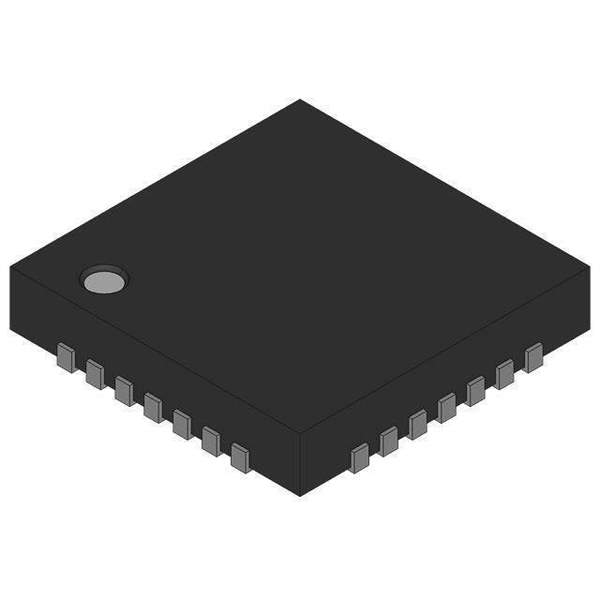

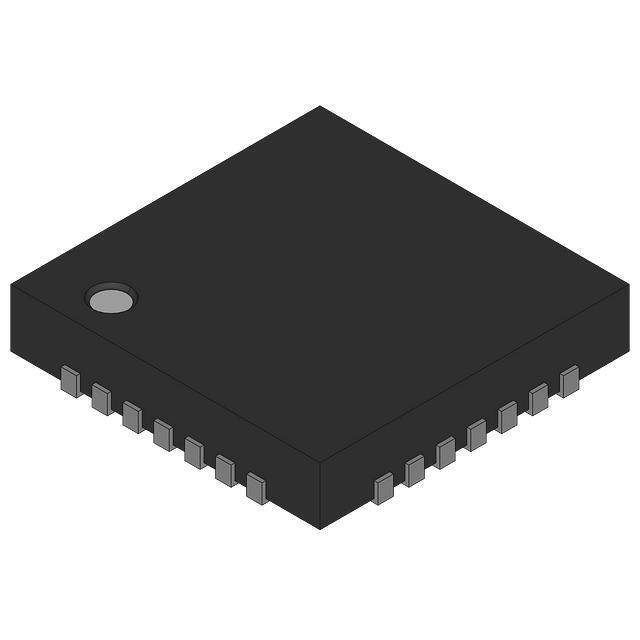

MAX2547ELM+ - Maxim Integrated

The MAX2547ELM+ is a highly integrated, state-of-the-art RF transceiver component designed by Maxim Integrated, aimed at addressing the demanding requirements of the wireless communication market. This advanced transceiver is ideal for multimode applications, including 3G and 4G cellular base stations, wireless local loop, and other high-performance wireless systems.

Key Features:

• High Integration: The MAX2547ELM+ integrates a complete RF-to-baseband receive path, VCOs, fractional-N PLLs, baseband filters, and a baseband receive path onto a single chip, significantly reducing the bill of materials and simplifying design.
• Wide Frequency Range: It operates over a wide frequency range, accommodating various global communication standards and allowing for flexible design options.
• Low Noise Figure: The device features a low noise figure, which translates to improved receiver sensitivity and overall system performance.
• High Linearity: The transceiver maintains high linearity, which is essential for handling high-order modulation schemes and ensuring signal integrity.
• Programmable: With its programmable baseband filters and gain settings, the MAX2547ELM+ offers designers the flexibility to tailor the device to specific application needs.

Performance Specifications:

• Integrated fractional-N frequency synthesizers
• High dynamic range to cope with complex signal environments
• Low power consumption for energy-efficient designs

Applications:

• 3G/4G Cellular Base Stations
• Wireless Local Loop Systems
• Wireless Infrastructure
• Software Defined Radios (SDR)

The MAX2547ELM+ is available in a compact, lead-free, 100-pin TQFP-EP package, which is suitable for space-constrained applications while providing excellent thermal performance. Maxim Integrated's commitment to quality and reliability ensures that the MAX2547ELM+ is a smart choice for designers looking to create robust, high-performance wireless communication systems.
