Maxim Integrated MAX2550ETN+T: RF Transceiver for Femtocell Base Stations

The MAX2550ETN+T from Maxim Integrated is a high-performance, single-chip RF transceiver specifically designed for use in 3G and 4G femtocell base stations. This compact and power-efficient transceiver is an ideal solution for small cell applications, providing reliable communication and enhanced network coverage in residential or small business environments.

The MAX2550ETN+T operates in the frequency range of 400MHz to 2.0GHz, making it versatile for various cellular standards, including WCDMA, HSPA, and LTE. It integrates a complete RF-to-bits solution, which includes a dual receiver, a dual transmitter, and all the necessary synthesizers, mixers, filters, and power amplifiers. This level of integration significantly reduces the external component count, board space, and system complexity, resulting in a lower overall cost for the end product.

Key features of the MAX2550ETN+T include its excellent receiver sensitivity and dynamic range, which ensure robust signal reception even in conditions with high interference. The device also boasts high linearity in its transmitter section, which minimizes signal distortion and allows for efficient use of the radio spectrum. Additionally, the transceiver supports multiple-input multiple-output (MIMO) configurations, which is critical for achieving high data rates and improved signal quality in modern wireless communication systems.

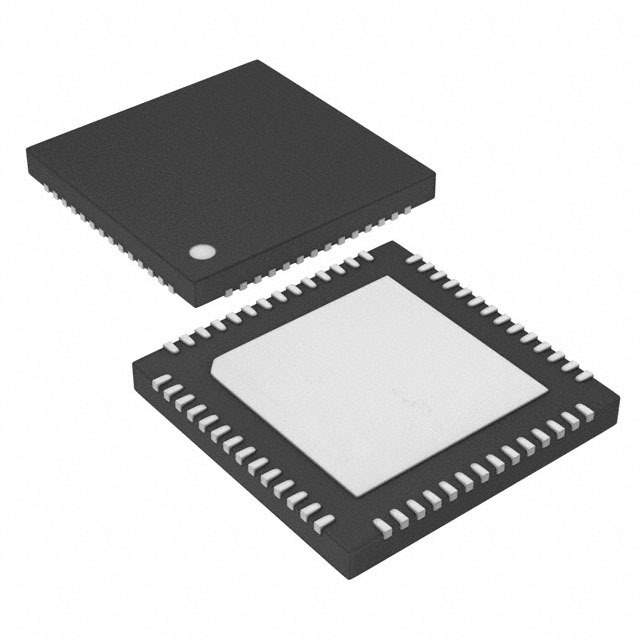

The MAX2550ETN+T is available in a compact 56-pin thin QFN package, which is suitable for space-constrained applications. The device also features a digital interface that allows for easy configuration and control by the baseband processor. With its low power consumption, the MAX2550ETN+T helps to extend the operational lifetime of femtocell stations, which is particularly important in remote or battery-powered installations.

In summary, the Maxim Integrated MAX2550ETN+T RF transceiver is a sophisticated, highly integrated component that delivers the performance and features needed for the next generation of small cell base stations. Its combination of versatility, efficiency, and high functionality makes it an excellent choice for manufacturers looking to enhance their wireless infrastructure solutions.
