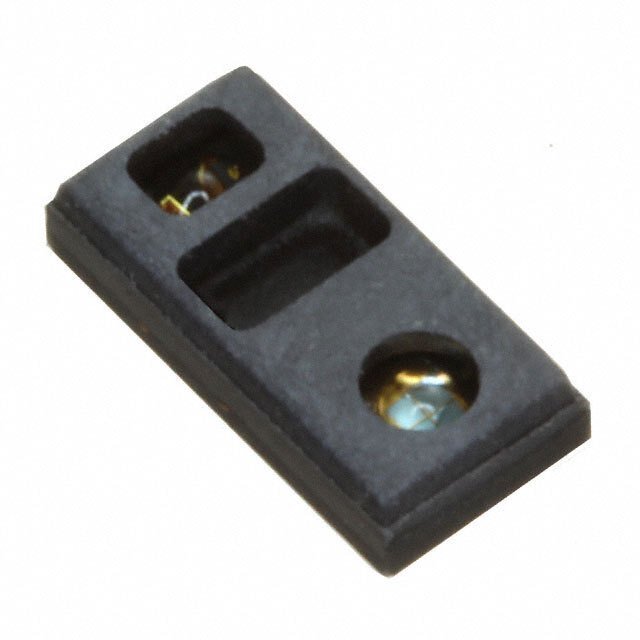

The MAX30100EFD+T, designed and manufactured by Maxim Integrated, is an integrated pulse oximetry and heart-rate monitor sensor solution. It combines two LEDs, a photodetector, optimized optics, and low-noise analog signal processing to detect pulse oximetry and heart-rate signals.

This high-performance device operates on a single 1.8V power supply and can be powered down through software with a negligible standby current, making it ideal for battery-powered applications. The MAX30100EFD+T is particularly suitable for wearable devices due to its small size and low power consumption. Its advanced technology enables mobile devices to deliver clinical-grade health monitoring accuracy.

Key Features:

• Integrated LEDs and Sensor: The device includes red and infrared LEDs for pulse oximetry measurements and a photodetector to capture the light after it passes through the skin.
• Low Power: Optimized for power-sensitive wearable devices, it provides excellent performance while consuming minimal power.
• High Sensitivity: Features high SNR (Signal-to-Noise Ratio) which allows for better signal quality and accuracy in measurement.
• Advanced Functionality: Offers complete pulse oximetry and heart-rate measurement solution on a single chip.
• Compact Size: The small form factor is ideal for space-constrained applications.

Applications:

• Wearable Devices
• Fitness Assistant Devices
• Medical Monitoring Devices
• Smart Watches
• Smartphones/Tablets

The MAX30100EFD+T is available in a 14-pin surface-mount package and is specified for operation from -40°C to +85°C, making it robust for diverse environments. Its ease of integration and sophisticated on-chip functionality make it a popular choice for developers looking to incorporate health monitoring features into their wearable and portable device designs.
