The MAX307MWI/PR is a high-performance, single-ended, 8-channel analog multiplexer from Maxim Integrated. It is designed to operate with a single +5V to +30V supply or dual ±4.5V to ±20V supplies, providing exceptional versatility for a wide range of applications. The MAX307MWI/PR is well-suited for use in data acquisition systems, test equipment, and signal routing applications where precision and reliability are paramount.

Key Features

• Low On-Resistance: The device boasts an on-resistance of only 100Ω (max), ensuring minimal signal attenuation and excellent linearity.
• Low Charge Injection: With a low charge injection of 5pC (max), the MAX307MWI/PR ensures that switching does not introduce significant errors into the signal path.
• Single-Ended 8-Channel Multiplexer: This device can route one of eight inputs to a common output, making it highly efficient for complex signal management.
• Break-Before-Make Switching: The multiplexer features break-before-make switching, which prevents momentary shorting when switching between channels.
• ESD Protection: It includes ESD protection diodes to all computer and control input pins, safeguarding the device from electrostatic discharges.

Applications

• Data Acquisition Systems
• Test Equipment
• Communication Systems
• Medical Instrumentation
• Process Control Systems

Technical Specifications

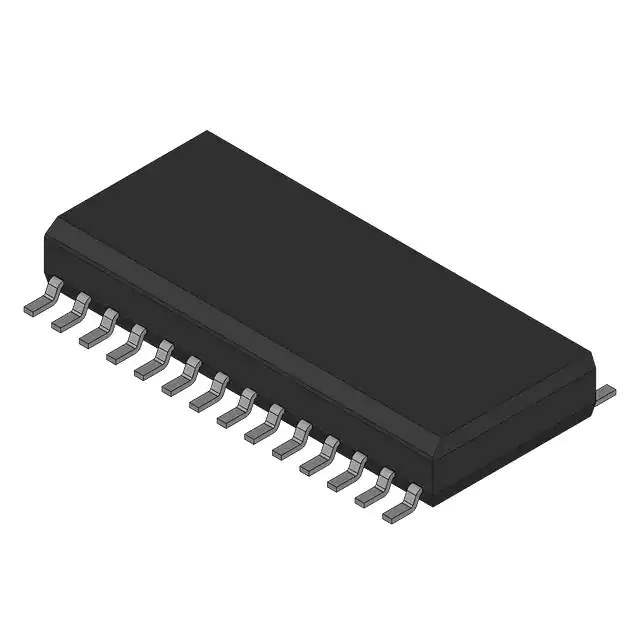

• Package: 16-Wide SO
• Operating Temperature Range: -40°C to +85°C
• Supply Voltage Range: +5V to +30V, or ±4.5V to ±20V
• On-Time (max): 450ns
• Off-Time (max): 150ns

The MAX307MWI/PR analog multiplexer is a testament to Maxim Integrated's commitment to providing high-quality, precise, and robust integrated circuits. Whether for industrial, commercial, or research purposes, this multiplexer stands out as a reliable choice for efficient signal routing and management.
