Product Overview: MAX3232ECAE+T by Maxim Integrated

The MAX3232ECAE+T is a remarkable integrated circuit designed and manufactured by Maxim Integrated, a leader in the development of innovative analog and mixed-signal products. This device is part of the MAX3232 series, which are 3.0V to 5.5V, low-power, up to 1Mbps, true RS-232 transceivers with auto shutdown. It is specifically tailored to meet the needs of applications requiring low-voltage operation and data transfer at rates up to 1Mbps.

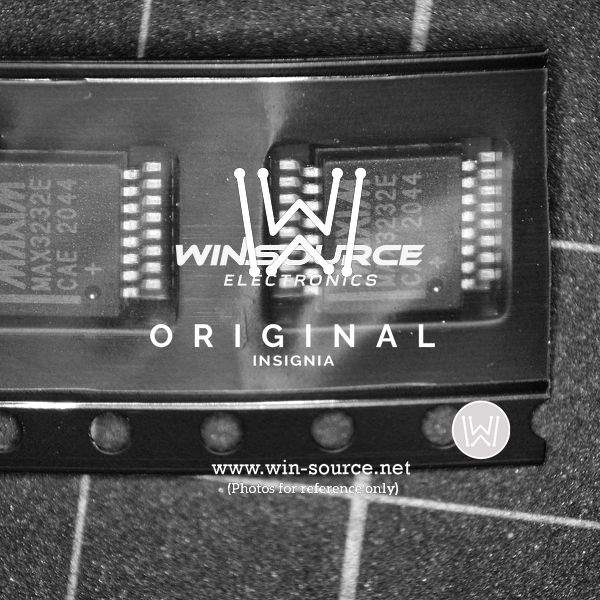

The MAX3232ECAE+T is an ideal solution for portable or compact devices due to its small footprint. It comes in a 16-pin SSOP (Shrink Small Outline Package) which is suitable for space-constrained applications. The transceiver consists of two line drivers and two line receivers, complying with the TIA/EIA-232-F standards. It operates at a voltage range from 3.0V to 5.5V, making it versatile for various system voltages.

One of the key features of the MAX3232ECAE+T is its low-power consumption, which is crucial for battery-powered devices. The IC also incorporates an automatic power-down function that minimizes power usage when not in operation, further extending battery life. This auto shutdown feature is activated when the device does not sense a valid signal transition on either the receiver or transmitter inputs.

The robustness of the MAX3232ECAE+T is highlighted by its ±15kV ESD protection for the transceiver's I/O pins, which safeguards the device from electrostatic discharges, a common issue in industrial and consumer environments. This level of protection ensures a reliable and long-lasting operation even in harsh conditions.

In summary, the MAX3232ECAE+T is a high-quality, low-power RS-232 transceiver that is perfect for applications that demand reliable data communication and low voltage operation. Its compact size, enhanced ESD protection, and power efficiency make it a top choice for designers in fields such as telecommunications, networking, and portable consumer electronics.
