The MAX4025EUP+T is a high-performance, single-ended, 8-channel analog multiplexer from Maxim Integrated. This precision device is designed to operate with a single +5V supply or dual ±5V supplies, making it a versatile choice for a wide range of applications, including data acquisition systems, test equipment, and communication systems.

Key Features

• Low On-Resistance: The MAX4025EUP+T offers a low on-resistance of 100Ω (max), which minimizes signal attenuation and ensures excellent signal integrity.
• Low Crosstalk and Off-Isolation: With a design that ensures minimal crosstalk and high off-isolation, this multiplexer is suitable for handling sensitive analog signals without interference.
• Single or Dual Supply Operation: It can operate from a single +5V supply or from dual ±5V supplies, providing flexibility for different circuit designs.
• Wide Bandwidth: The device boasts a wide bandwidth, facilitating the passage of high-frequency signals without significant distortion.
• Low Power Consumption: Designed for energy efficiency, the MAX4025EUP+T consumes minimal power, making it ideal for battery-powered and portable applications.
• High ESD Protection: The inputs and outputs are protected against electrostatic discharge (ESD), enhancing the robustness and longevity of the device.

Applications

The MAX4025EUP+T is suitable for various applications that require high-quality signal routing with minimal signal loss. It is commonly used in:

• Audio and Video Switching Systems
• Data Acquisition Systems
• Communication Systems
• Medical Instrumentation
• Test Equipment

Package and Quality

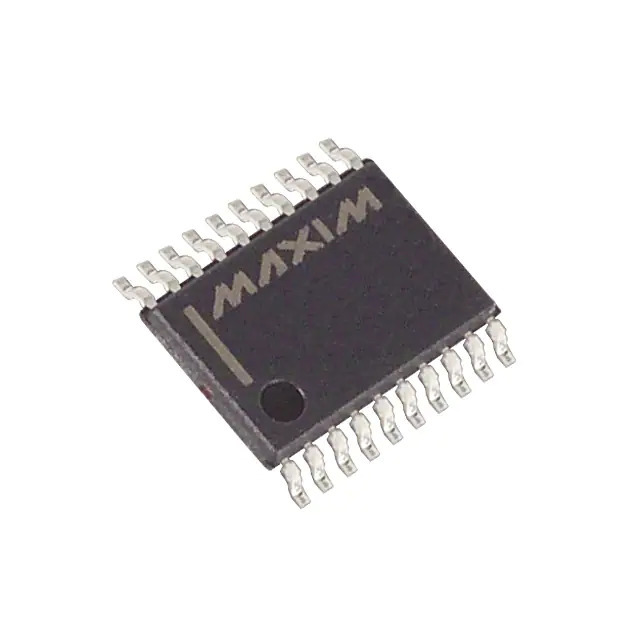

This multiplexer comes in a small 20-pin TSSOP package, which is ideal for space-constrained applications. Additionally, Maxim Integrated ensures high-quality and reliability standards, making the MAX4025EUP+T a trustworthy component for your electronic designs.
