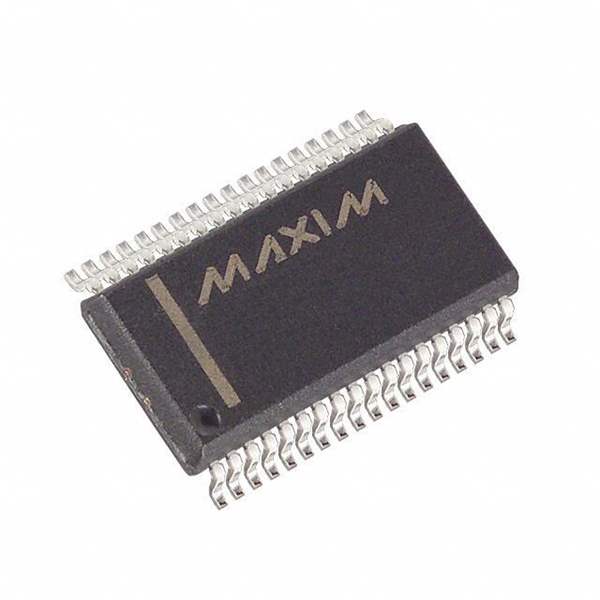

Maxim Integrated MAX4548EAX-T Analog Switch

The MAX4548EAX-T is a high-performance, low-voltage, single-pole/double-throw (SPDT) analog switch from Maxim Integrated. This device is designed to deliver precision and reliability for a wide range of applications, from signal routing to data acquisition systems. The MAX4548EAX-T operates with a single +1.8V to +5.5V supply, making it versatile for both portable and fixed power applications.

One of the defining features of the MAX4548EAX-T is its low on-resistance (R<sub>ON), which typically stands at 0.5 ohms. This ensures minimal signal distortion and power loss, thereby preserving signal integrity. Furthermore, the switch's R<sub>ON is matched between channels to within 0.05 ohms and is flat (0.2 ohms max) over the specified signal range, providing excellent linearity and low signal attenuation.

The MAX4548EAX-T is also characterized by its low power consumption, drawing a mere 1µA (max) of quiescent current. This is particularly beneficial for battery-operated devices where power efficiency is crucial. In addition, the device features fast switching speeds (t<sub>ON = 120ns and t<sub>OFF = 70ns), which is ideal for applications that require high-speed operation.

For enhanced usability, the MAX4548EAX-T offers a high off-isolation of -50dB at 50MHz and crosstalk of -74dB at 50MHz, which minimizes noise and interference between channels. The device is also TTL/CMOS logic compatible, allowing for easy integration with digital systems.

Maxim Integrated has packaged the MAX4548EAX-T in a space-saving 16-pin SSOP, making it suitable for high-density circuit designs. The extended temperature range of -40°C to +85°C ensures reliable operation across various environmental conditions. With its robust feature set, the MAX4548EAX-T is an excellent choice for designers looking to optimize their analog signal routing with a switch that offers both high performance and reliability.

Whether used in data acquisition systems, communication devices, or audio/visual equipment, the MAX4548EAX-T by Maxim Integrated stands out as a superior choice for efficient and precise analog signal switching.
