Introducing the MAX4744ELB+ from Maxim Integrated

The MAX4744ELB+ is a high-performance, low-voltage, single-pole/double-throw (SPDT) analog switch from Maxim Integrated that offers an ideal solution for precision analog signal routing. This component is designed to operate within a wide voltage range of 1.8V to 5.5V, making it versatile for various applications, from battery-powered devices to industrial systems.

With its ultra-low on-resistance of just 0.6 ohms (typical) at a +5V supply, the MAX4744ELB+ provides an excellent signal integrity with minimal signal distortion, which is crucial for maintaining the quality of the transmitted analog signals. This feature, combined with the low on-resistance flatness of 0.2 ohms (typical), ensures consistent performance over the entire analog signal range.

The device also boasts a high off-isolation of -75dB at 1MHz and a crosstalk of -85dB at 1MHz, which significantly reduces signal interference, allowing for cleaner and more accurate signal routing. The MAX4744ELB+ is designed with a break-before-make switching action, which prevents momentary shorting when switching channels.

For enhanced usability, the MAX4744ELB+ includes a digital logic input that is compatible with low-voltage CMOS signals, making it easy to interface with modern microcontrollers and digital logic systems. This feature simplifies the design and integration process for engineers and designers.

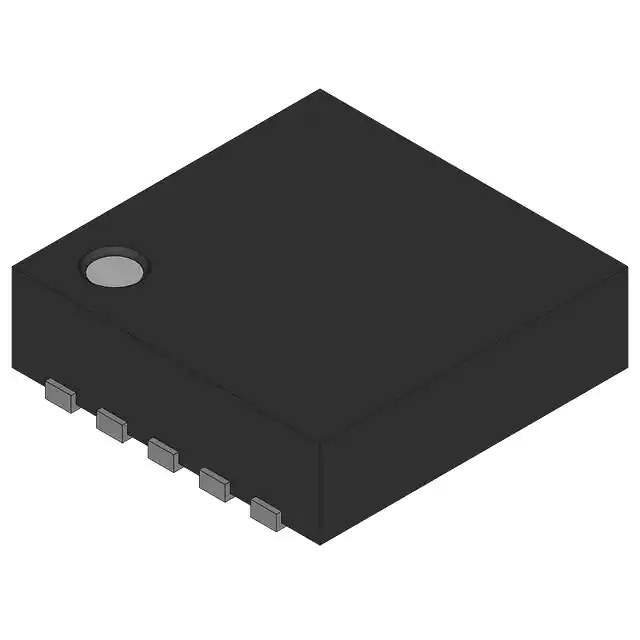

The MAX4744ELB+ comes in a compact, lead-free, 10-pin µMAX package, which is ideal for space-constrained applications. Its small size does not compromise its robustness, as it is specified for the extended industrial temperature range of -40°C to +85°C, ensuring reliable operation under various environmental conditions.

In summary, the MAX4744ELB+ from Maxim Integrated is a superior choice for designers looking for a reliable and efficient SPDT analog switch that provides high-performance signal routing with minimal distortion and interference. Its low-voltage operation, exceptional on-resistance characteristics, and compatibility with digital logic make it a versatile and indispensable component in a wide range of electronic systems.
