The MAX4760EBX+TW is a high-performance analog switch from Maxim Integrated, designed to deliver precision signal routing in a variety of applications. This device integrates advanced technology to offer low on-resistance, low crosstalk, and high bandwidth, making it an ideal solution for audio, video, and data signal switching.

Key Features

• Low On-Resistance: The switch provides an extremely low on-resistance (RON), which minimizes signal distortion and ensures high signal integrity.
• High Bandwidth: With its high bandwidth capabilities, the MAX4760EBX+TW can handle high-speed signals without significant attenuation, making it suitable for high-frequency applications.
• Single-Supply Operation: The device operates from a single power supply, ranging from +1.8V to +5.5V, allowing for flexibility in various system designs.
• Multiple Switch Configurations: It offers a variety of switch configurations, enabling designers to select the most appropriate configuration for their specific application.
• Low Crosstalk: The switch is engineered to minimize crosstalk between channels, which is crucial for maintaining the purity of the signal paths in multi-channel systems.
• ESD Protection: The MAX4760EBX+TW is equipped with robust electrostatic discharge (ESD) protection, enhancing its durability and reliability in harsh environments.

Applications

The versatility of the MAX4760EBX+TW makes it suitable for a wide range of applications, including:

• Audio and Video Signal Routing
• Data Acquisition Systems
• Communication Systems
• Medical Equipment
• Automotive Infotainment

Package and Quality

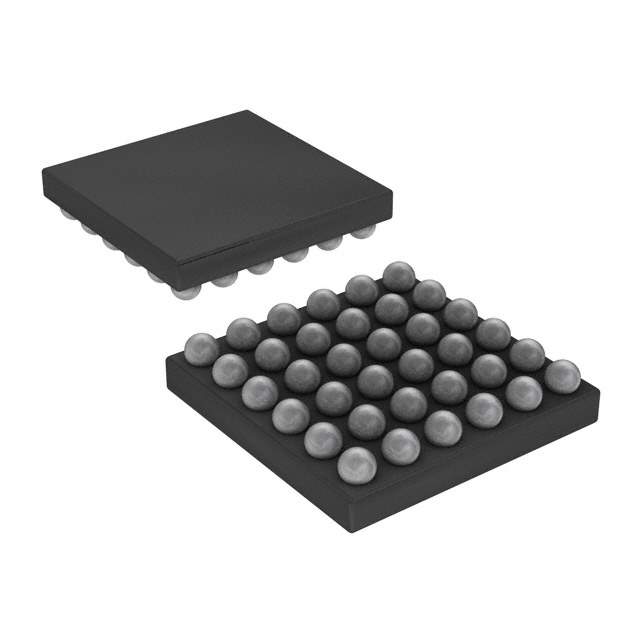

The MAX4760EBX+TW comes in a compact, surface-mount package, enabling it to fit into space-constrained designs. Maxim Integrated is committed to high-quality standards, and this product is no exception. It undergoes rigorous testing to ensure performance and reliability, meeting the stringent requirements of industrial and commercial applications.
