Maxim Integrated MAX4888BETI+T Product Overview

The MAX4888BETI+T from Maxim Integrated is a high-performance, low-power, PCIe 2.0 (5.0 Gbps) passive switch IC designed for use in a variety of applications that require switching of high-speed signals. This versatile component is ideal for applications in the computing, networking, and telecommunications industries, among others.

Featuring a quad SPDT (Single Pole Double Throw) configuration, the MAX4888BETI+T allows for the routing of differential signals to two different destinations without signal degradation. Its low on-capacitance (CON) and on-resistance (RON) ensure minimal insertion loss and distortion, making it suitable for high-speed data transmission while maintaining signal integrity.

Key Features

• High-Speed Signal Switching: Supports PCIe 2.0 5.0 Gbps high-speed data transmission, making it well-suited for applications that require fast data transfer rates.
• Low Power Consumption: Designed with power efficiency in mind, the MAX4888BETI+T helps to reduce overall power usage in systems, contributing to energy savings.
• Quad SPDT Configuration: Offers flexibility in signal routing with four independently controllable switch channels.
• Excellent Signal Integrity: Features low on-capacitance and on-resistance to minimize insertion loss and maintain the quality of high-speed signals.
• Wide Operating Temperature Range: Operates reliably over a broad temperature range from -40°C to +85°C, making it suitable for harsh environments.

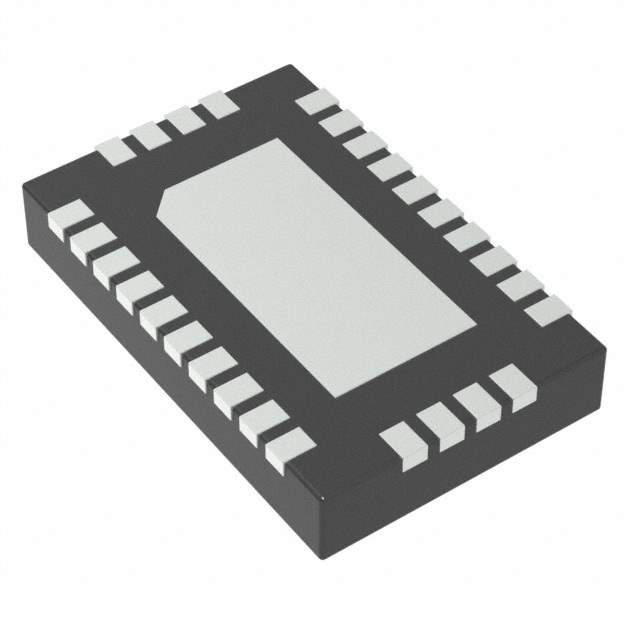

• Compact Package: Comes in a space-saving 28-pin TQFN package, ideal for applications where board space is at a premium.

Applications

The MAX4888BETI+T is well-suited for a range of applications, including:

• Data center and enterprise storage systems
• High-speed networking equipment
• Servers and workstations
• Signal routing in telecommunications infrastructure
• Consumer electronics with high-speed data interfaces

With its combination of high-speed performance, low power consumption, and signal integrity, the MAX4888BETI+T from Maxim Integrated is a reliable choice for designers looking to incorporate a high-quality PCIe switch into their next-generation electronic designs.
