Product Overview: MAX488ESA+T

The MAX488ESA+T is a low-power, slew-rate-limited transceiver for RS-485 and RS-422 communication from Maxim Integrated. This device is designed to provide reliable, high-speed data transmission for industrial, network, and automation applications where a balanced transmission line is required. It features a half-duplex communication capability that allows it to transmit and receive data over a single pair of wires, making it ideal for cost-sensitive and space-constrained applications.

With its integrated driver and receiver, the MAX488ESA+T can operate at speeds up to 2.5Mbps while ensuring controlled slew rates to minimize electromagnetic interference (EMI) and reflections, thus improving signal integrity. This transceiver operates from a single +5V supply, which is common in digital systems, making it easy to integrate into existing designs.

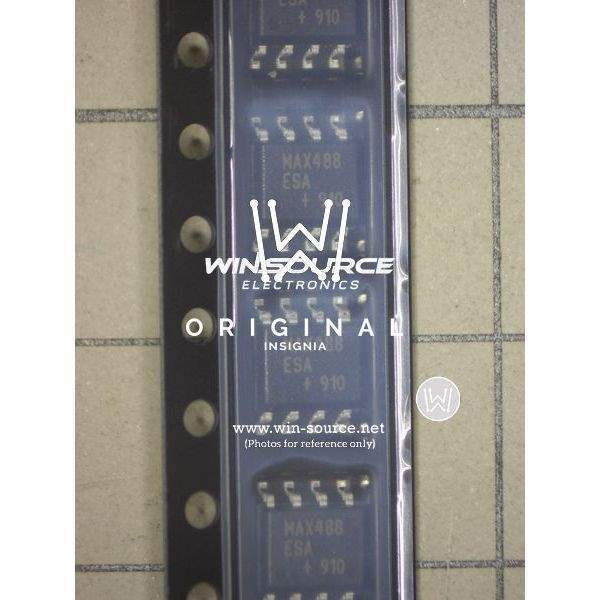

The MAX488ESA+T comes in an 8-pin SOIC package, which is a compact form factor suitable for surface-mount technology (SMT) assembly processes. This makes the device an excellent choice for densely packed PCBs where space is at a premium. The transceiver is also available in tape and reel packaging (denoted by the '+T' suffix), facilitating automated pick-and-place assembly for high-volume production.

One of the key features of the MAX488ESA+T is its fail-safe receiver, which guarantees a logic-high receiver output when the input is open circuit, shorted, or connected to a terminated transmission line with all drivers disabled. This ensures robust communication in the absence of a signal and enhances the reliability of the system.

The device also boasts a wide common-mode voltage range, making it resistant to ground potential differences between nodes on a network, which is particularly useful in complex or electrically noisy environments. Additionally, the MAX488ESA+T has thermal shutdown and current-limiting features to protect against fault conditions, further improving system reliability.

In summary, the MAX488ESA+T from Maxim Integrated is a versatile and robust RS-485/RS-422 transceiver that is well-suited for a variety of communication applications. Its low-power operation, controlled slew rate, and protective features make it an excellent choice for designers looking to implement reliable data transmission in their systems.
