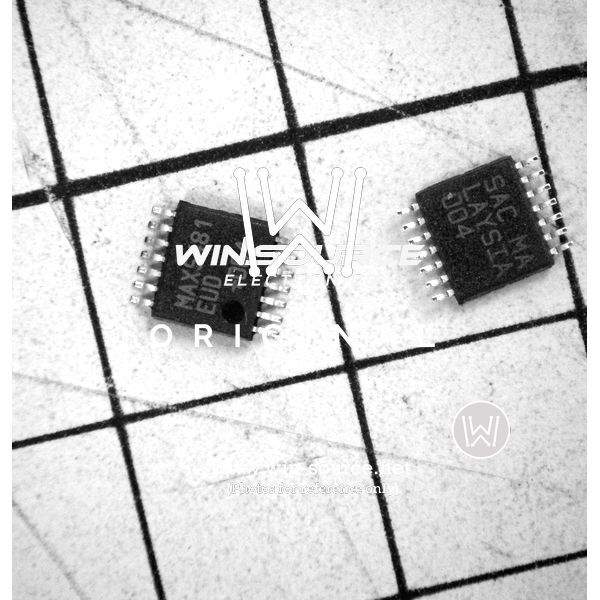

Product Overview: MAX5481EUD+T from Maxim Integrated

The MAX5481EUD+T is a high-precision, nonvolatile, digital potentiometer designed by Maxim Integrated, offering a compact and reliable solution for a wide array of applications requiring digital control over analog signals. This innovative component is part of Maxim's extensive portfolio of integrated circuits designed for industrial, communication, and consumer electronics markets.

Key Features

• Resolution: The device boasts a 10-bit resolution, providing fine granularity with 1024 taps, allowing for precise adjustments to the output signal.
• Interface: It features a 3-wire SPI-compatible serial interface, ensuring easy communication with microcontrollers and other digital systems.
• Memory: With nonvolatile memory (EEPROM), the MAX5481EUD+T retains its last programmed position even after power is removed, making it ideal for settings that need to be preserved across power cycles.
• Dual Channels: The potentiometer comes with two independent channels, giving designers flexibility in controlling two separate signal paths simultaneously.
• Power Supply: Operating from a single +2.7V to +5.5V supply, it is suitable for both 3V and 5V systems.
• Package: Housed in a 14-pin TSSOP package, the MAX5481EUD+T is designed for space-constrained applications.
• Temperature Range: It operates over an extended industrial temperature range of -40°C to +85°C, ensuring reliable performance in harsh environments.

Applications

The MAX5481EUD+T is versatile and can be used in various applications such as:

• Adjustable power supplies and voltage references
• Calibration and trimming systems
• Audio equipment for volume and tone control
• Automated product testing
• Data acquisition systems

Conclusion

Maxim Integrated's MAX5481EUD+T is an excellent choice for engineers and designers looking for a reliable and precise digital potentiometer. Its nonvolatile memory, dual-channel operation, and wide operating temperature range make it suitable for a multitude of applications that require digital control over analog parameters.
