MAX5489ETE-T Dual 256-Tap Nonvolatile Digital Potentiometer

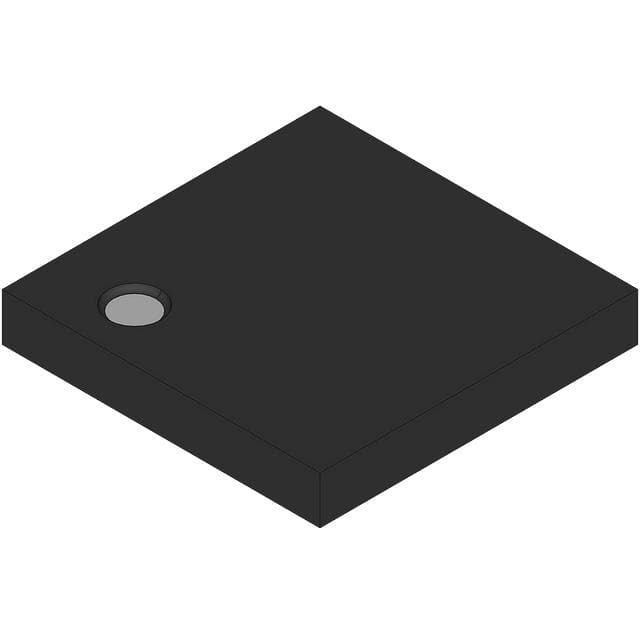

The MAX5489ETE-T from Maxim Integrated is a sophisticated dual-channel digital potentiometer that offers a wide range of features designed for various applications requiring precise digital control over analog signals. This component integrates two individually programmable potentiometers into a single compact 16-pin TQFN package, making it an ideal choice for space-constrained applications.

Each potentiometer in the MAX5489ETE-T provides 256 taps, allowing for fine-grained control over the resistance settings. With nonvolatile memory (EEPROM), the device retains the last programmed settings even after power-off, ensuring consistent performance across power cycles. This is particularly useful for applications that require a specific startup condition or where user settings need to be preserved.

The MAX5489ETE-T operates from a single supply voltage ranging from 2.7V to 5.5V, accommodating a variety of logic levels and making it suitable for use in both 3V and 5V systems. The device features a digital interface that is compatible with SPI™, QSPI™, MICROWIRE™, and DSP interface standards, providing flexibility in system design and ease of integration into existing architectures.

With a resistance range of 10kΩ per potentiometer, this digital potentiometer is versatile enough to be used in applications such as volume control, LCD screen adjustment, and feedback systems where precise resistance tuning is required. The MAX5489ETE-T offers a temperature coefficient of 35ppm/°C, ensuring stable performance over a wide temperature range.

Safety and reliability are enhanced with the inclusion of 50kΩ end-to-end resistance and a wiper resistance of 70Ω (typical), which provides a robust signal path. The device also features a low standby current, which is beneficial for battery-powered or energy-sensitive applications.

In summary, the MAX5489ETE-T from Maxim Integrated is a highly reliable and versatile digital potentiometer that provides precise control, nonvolatile storage, and a user-friendly interface for a wide range of electronic applications.
